CS-H1108PLS

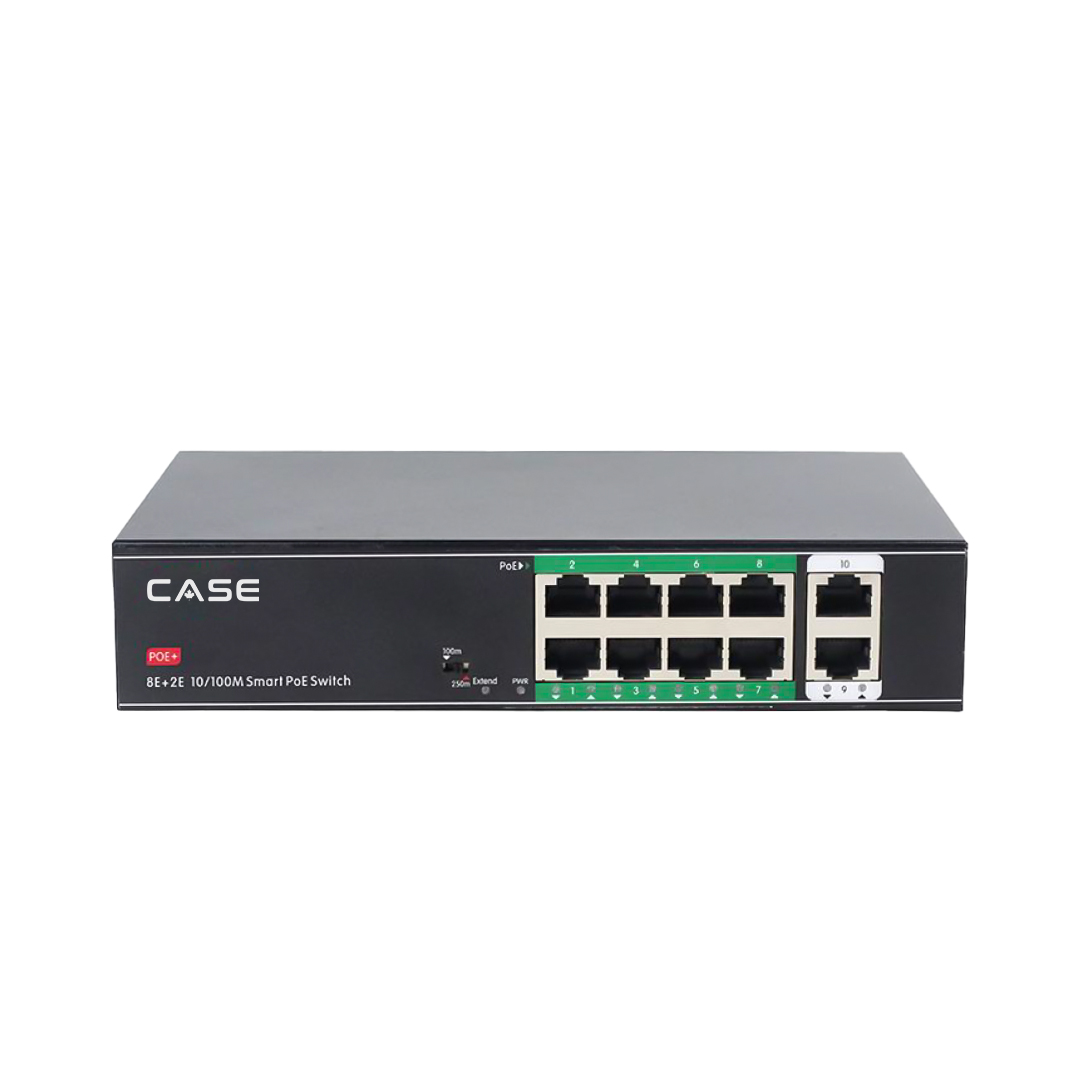

CASE CS-H1108PLS – 10-Port 10/100M PoE Switch

• Flexible Networking
  • 8 × 10/100M PoE+ RJ45 ports (up to 30W each)
  • 2 × 10/100M uplink RJ45 ports
  • Switching capacity of 2Gbps

• Smart PoE+ Power Supply
  • Complies with IEEE 802.3af/at (PoE+) standard
  • Up to 30W per port, total PoE power budget 100W
  • Automatic PoE detection – won’t damage non-PoE devices
  • PoE priority system ensures critical devices get power first

• Extended Transmission & VLAN Mode
  • EXTEND Mode (250m): Increases transmission distance up to 250m over Cat5 cables (10Mbps)
  • VLAN Mode: Isolates ports 1-8 from each other, reducing broadcast storms & DHCP conflicts, while keeping uplinks (ports 9-10) connected

• Stable & Reliable Operation
  • Fanless, low power consumption design with galvanized steel housing
  • 4KV surge protection, IP30 protection level
  • Plug-and-play, unmanaged – no configuration required
  • Clear LED indicators for power, link, PoE, and mode

• Durability & Warranty
  • Operating temperature: -20°C to +55°C
  • Certified: CCC, CE, FCC, RoHS
  • 6-year warranty with lifelong maintenance

👉 Ideal for SMEs, hotels, campuses, dormitories, and video surveillance projects requiring a cost-efficient PoE solution.
