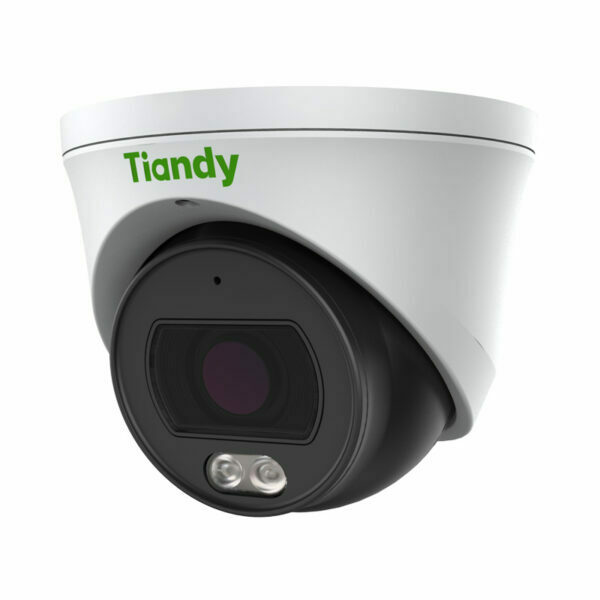

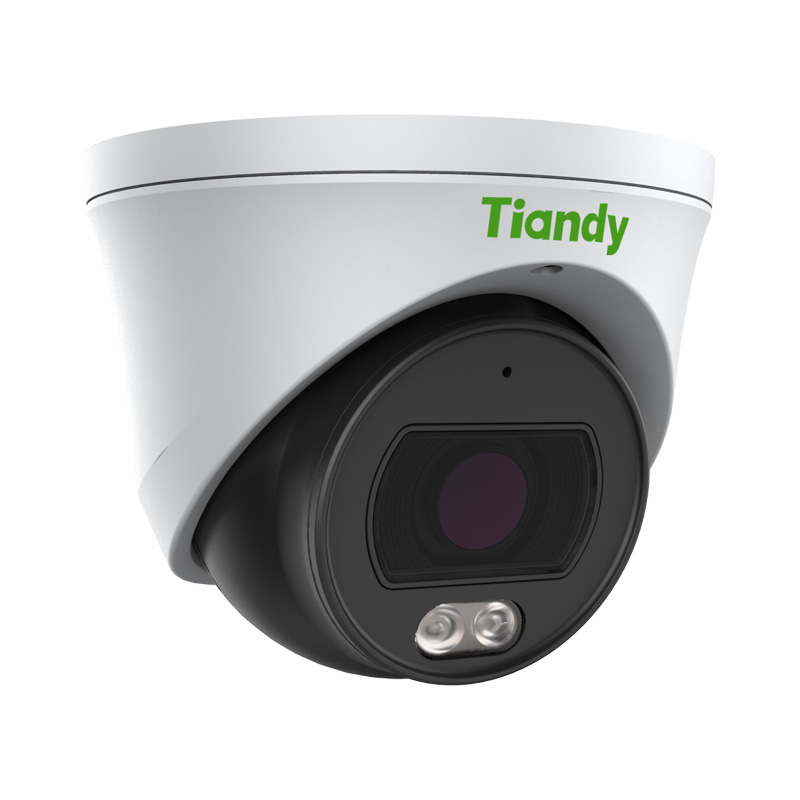

Name: TC-C34SP Spec W/E/Y/M/2.8mm/V4.0 - ANABON SECURITY INC
SKU: 1D.20010.002416
Price: 190.00 USD
Availability: OutOfStock

·Up to 2560X1440@25fps
·S+265/H.265/H.264
·Min. illumination Color: [email protected]
·120dB WDR
·2 Warmlights, 15~20m
·Operating Conditions -40°C~60°C, 0~95% RH
·POE

SKU: 1D.20010.002416 Categories: IP Camera, Lite Series, Turret

Basic Info

Description	Metal-4MP Warmlight
Max Resolution	4MP (2560×1440)
Model	TC-C34SP Spec:W/E/Y/M/2.8mm/V4.0
Series	Lite Series Color Maker
Type	Turret

General

IK10	No
Impact Protection	IP67
Lightning Protection	Yes
Operating Condition	-35~60°C
Power Consumption(IR ON)	MAX:6W (12V) MAX:7.5W (PoE)
Power Supply	DC12V ±25% /PoE
Working Humidity	0-95% RH

Interface

Audio I/O	No
Built-in Mic	Yes
Built-in Speaker	No
Communication Interface	1 x RJ45100M self adaptive Ethernet port
Plugin Free	Yes
Reset Button	Yes
SDK	Yes

Network

ANR	No
DDNS	Yes
ONVIF	Profile S/T/G
Web Version	Web6
Wi-Fi	No

Smart Features

Corridor Mode	No
EW (Early Warning)	No
Face Capture	No
Heatmap	No
Human/Vehicle	No
Video Analytics	Perimeter, Tripwire


BLC	Yes
Digital Noise Reduction	3D DNR
Frame Rate	2560×1440@25fps
HLC	Yes
Picture Overlay	No
Privacy Mask	Y(4regions)
Privacyes mask	Yes (4 regions)
ROI	Support 8 fixed regions of coding
Smart Defog	Yes

Compression Standard

Audio Bit Rate	8K~48Kbps
Audio Compression	G.711A/G.711U/ADPCM_D
Video Bit Rate	32Kbps~6Mbps

illuminator

IR Range	No
IR LEDs	No
Smart IR	Yes
White Light Distance	15~20m

Lens

Aperture Range	F1.6
Autoiris	no
Horizontal FOV	103.4°
Lens (mm)	2.8mm, 4mm
Lens Mount	M16
Lens Type	Fixed
Vertical FOV	58.1°

Camera

Angle Adjustment	pan: 0 to 340°, tilt 0 to 75°, rotate 0to 360°
Illumination	Color: 0.0004 Lux @ (F1.6, AGCON) , B/W: 0 Lux withLEDon
IRCut Filter	No
Sensor Size	1/1.8" CMOS
WDR	120dB

Onboard Storage	Built-in Micro SD card slot , up to 512GB
Incoming Date	0
Incoming	0
Version	V4.0
Material	Metal
Heater	No
CableInterface	PigTail
RS485	No
USB	No
1st Stream	PAL: 25fps(2592×1520),25fps(2560×1440,2304×1296,1920×1080,1280×720) NTSC: 24fps(2592×1520),24fps(2560×1440),30fps (2304×1296,1920×1080,1280×720)
Starlight	Yes
OSD	16×16, 32×32, 48×48, 64×64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions
Language	18
Remote Connection	≤7
P2P	Yes (Mutually exclusive with Profile G)
Milestone	Yes
CGI	Yes
POE	Yes
Dimension-Packed	176×166×121
Dimension (mm)	132×132×99
Brands	Tiandy
Per Box	24
Detail	4MP Fixed Color Maker IP Turret

TC-C34SP Spec-W-E-Y-M-2.8mm-V4.0
