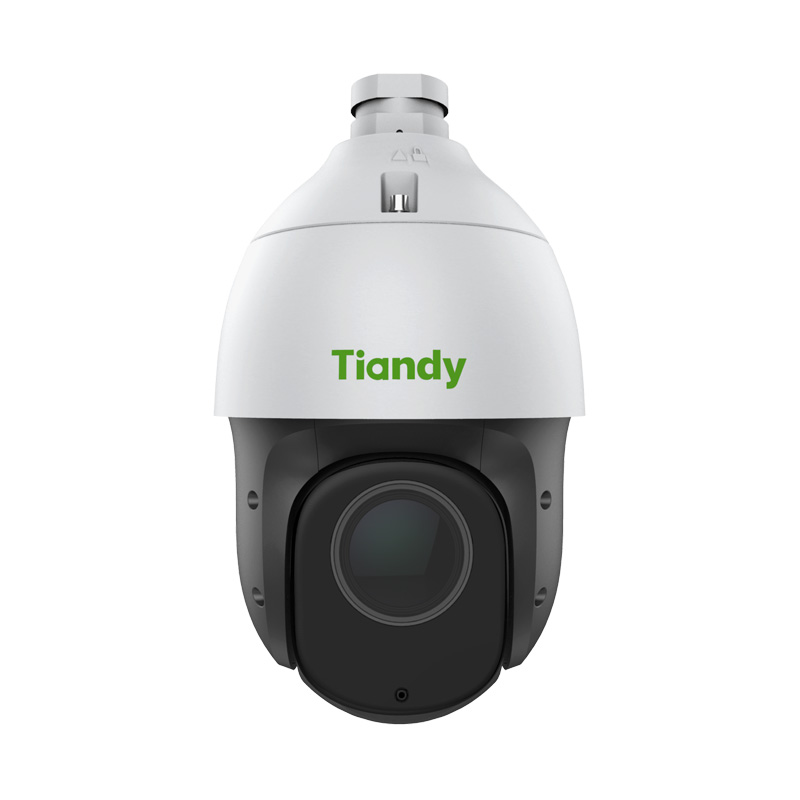

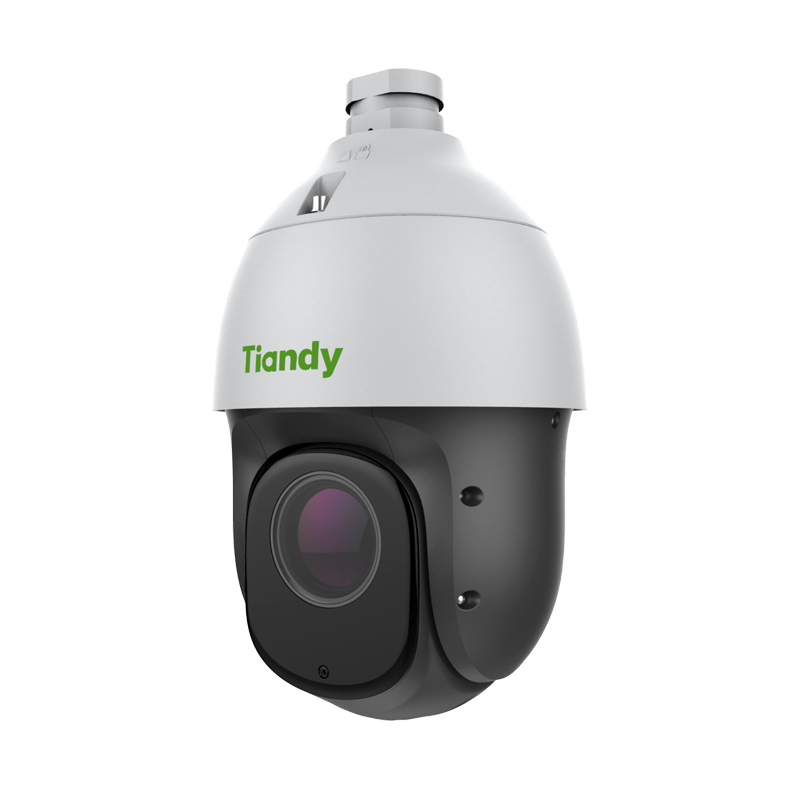

Speed Dome

TC-H324S Spec:25X//I/E/V/Am/V3.0

Name: TC-H324S Spec:25X//I/E/V/Am/V3.0
SKU: 1D.20020.000577

Availability:

In stock

SKU: 1D.20020.000577

Add to wishlist

Compare

Up to 1920×[email protected]
·Min. illumination Color: [email protected]
·Optical zoom: 25×, digital zoom 16×
·Smart IR, IR Range: 150m
·S+265/H.265/H.264/M-JPEG
·Intelligent monitoring/ Face Capture mode
·Support Auto-tracking
·Plugin Free
·IP66，IK10

Basic Info

Model	TC-H324S Spec:25X//I/E/V/V3.0
Resolution	2.0MP (1920×1080)
Series	LITE-4inch-2MP-25X
Version	V3.0

Camera

Day & Night Switch	IR Cut Filter with Auto Switch
Digital Zoom	16x
Illumination	Color: [email protected] (F1.5, AGC ON), BW: 0lux with IR
Optical Zoom	25x
Sensor Size	1/2.8"
Shutter Time	1s to 1/100,000s
WDR	140dB

Lens

Angle of View	H-FOV：58.5° (w)~2.8° (t) V-FOV：33.2° (w)~1.5° (t)
Aperture Range	F1.5~F3.8
Focal Length	4.8mm~120mm
Zoom Speed	<4s

Pan & Tilt

3D Position	Yes
Cruise	16, up to 32 presets per cruise
Number of preset	500
Pan Range	360
Pan Speed	Pan Manual Speed: 0.1°~200°/s, Pan Preset Speed: 240°/s
Pattern	8, each with 600s memory or 1000 orders
Power-off Recovery	Yes
Preset Accuracy	±0.4°
Scan	8
Tilt Range	'-16°~90° (Auto flip)
Tilt Speed	Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s

Illuminator

IR Distance	150m
IR LEDs	6
IR Laser	No
IR Laser Distance	No
White Light	No

Compression Standard

Audio Bitrate	8kHz/32kHz/48kHz
Audio Compression	G.711A/G.711U/ADPCM_D/AAC_LC
Video Bitrate	32Kbps~16Mbps
Video Compression	S+265/H.265/H.264/M-JPEG


3D DNR	Yes
BNC	No
Corridor Format	N/A
Frame Rate	1920×[email protected]
HLC	Yes
OSD	16×16, 24×24, 32×32, 48×48, 64×64, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions
ROI	7 Areas for Both Main and Sub Stream, 1 Dynamic Area
Smart Defog	Yes
Smart IR	Yes
Starlight	Yes

Feature

Alarm Trigger	Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
Auto-tracking	Yes
EW (Early Warning)	No

Face Detection and Analytics

Face Capture Rate	99%
Heatmap	Yes
Human/Vehicle	Yes
Number of Captures	16
Picture Overlay	Yes
Privacy Mask	Yes

Network

DDNS	Yes
ONVIF	Profile S/T/G/M
Plugin Free	Yes
Remote Connection	≤7
Web Version	Web6

Interface

Alarm I/O	1/1
Audio I/O	1/1
Built-in Mic	No
Built-in Speaker	No
Ethernet Interface	1 RJ45 10M/100M self adaptive Ethernet port
Reset Button	Yes
SDK	Yes
Wiper	No

General

Impact Protection	IP66
Net Weight (lb)	6.39lb
Power Consumption	9W(IR OFF)
Power Consumption(IR ON)	22W(IR ON)
Power Supply	DC12V±10%/POE(802.3at)
Working Humidity	0-95%RH
Working Temperature	-30°~70°C (IR OFF), -30°~40°C (IR ON)

Auto Iris	support DC drive
Onboard Storage	Y(512G)
RS485	No
RS485 Protocol	No
1st Stream	PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480) NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480)
Sub Stream	PAL: 25fps (704×576, 704×288, 640×360, 352×288) NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
3rd Stream	PAL: 25fps (352×288) NTSC: 30fps (352×240)
2nd Stream	Yes
Language	18
Brands	Tiandy
P2P	Yes
RTSP	Yes
CGI	Yes
LP/SP/VTPM	Yes
POE	Yes
Dimension-Packed	250×250×445
Dimension (mm)	161×276
Dimension (inch)	6.34×10.87
Gross Weight	5.1kg
Gross Weight (lb)	11.24
Net Weight	2.9kg
Per Box	2
Operating Mode	Intelligent Monitoring/Face Capture
