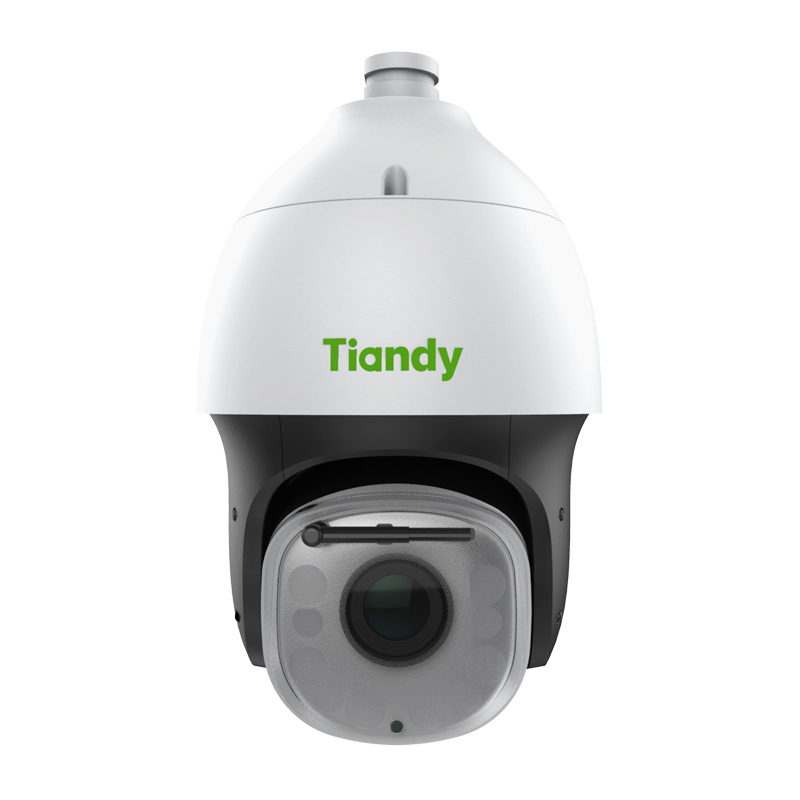

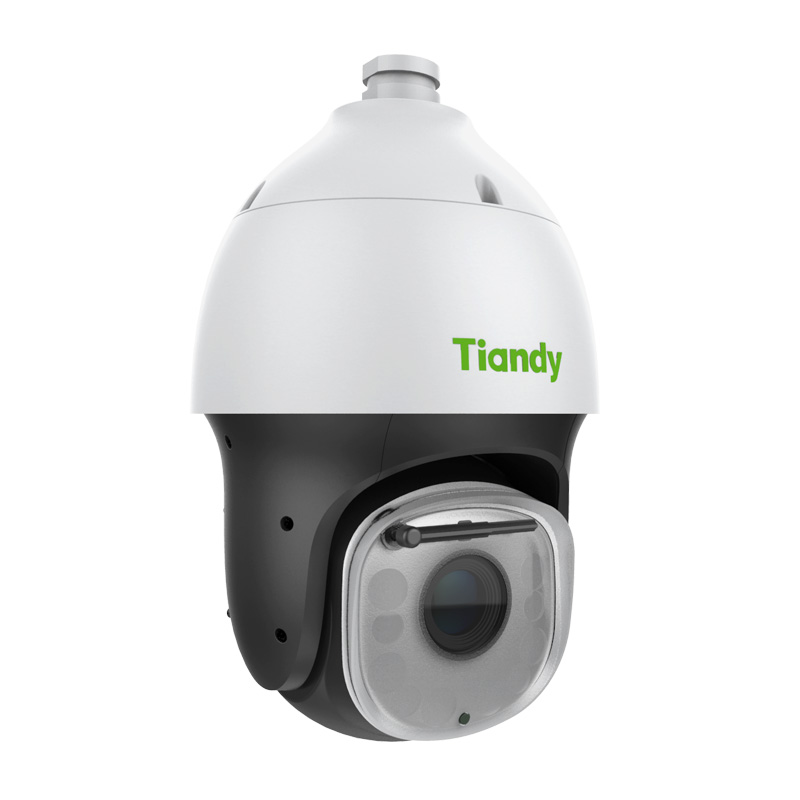

Speed Dome, Pro Series

TC-H326M Spec 44X/IW/A/Am

Name: TC-H326M Spec 44X/IW/A/Am
SKU: 1D.20020.000290

Availability:

In stock

SKU: 1D.20020.000290

Add to wishlist

Compare

·Auto-Tracking Early Warning (AEW)
·Up to 1920×1080@60fps
·Min. illumination Color: 0.0008Lux@
F1.5
·Optical zoom: 44×, digital zoom 16× ·Support Human/Vehicle Classification
·S+265/H.265/H.264/M-JPEG
·POE++
·IP66

Compare

·Auto-Tracking Early Warning (AEW)
·Up to 1920×1080@60fps
·Min. illumination Color: 0.0008Lux@ F1.5
·Optical zoom: 44×, digital zoom 16×
·Support Human/Vehicle Classification
·S+265/H.265/H.264/M-JPEG
·POE++
·IP66

SKU: 1D.20020.000290 Categories: Speed Dome, Pro Series

General

Impact Protection	IP66
Net Weight (lb)	12.02lb
Power Consumption	22W (IR OFF)
Power Consumption(IR ON)	43W (IR ON )
Power Supply	AC24V±15%
Working Humidity	0-95%RH
Working Temperature	-30°~70°C (IR OFF), -30°~40°C (IR ON)

Interface

Alarm I/O	8/2
Audio I/O	1/1
Built-in Mic	No
Built-in Speaker	Yes
Ethernet Interface	1 RJ45 10M/100M self adaptive Ethernet port
Reset Button	Yes
SDK	Yes
Wiper	Yes

Network

DDNS	Yes
ONVIF	Profile S/T/G
Plugin Free	Yes
Remote Connection	≤7
Web Version	Web6

Face Detection and Analytics

Face Capture Rate	99.00%
Heatmap	Yes
Human/Vehicle	Yes
Number of Captures	1 (default), 2, 3 optional
Picture Overlay	Yes
Privacy Mask	Yes
Video Analytics	Audio Abnormal, Auto tracking, Demographics (People Counting), Double Tripwire, Heatmap, Loitering, Object Abandon, Object Lost, On Duty Detection, Parking, Perimeter, Safety Helmet Detection, Tripwire, Video Abnormal, Human/Vehicle Classification

Feature

Alarm Trigger	Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
Auto-tracking	Yes
EW (Early Warning)	Yes


3D DNR	Yes
BNC	Yes
Corridor Format	No
Frame Rate	1920×1080@60fps
HLC	Yes
OSD	16×16, 24×24, 32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions
ROI	7 Dynamic Areas for Both Main and Sub Stream, support auto-tracking ROI
Smart Defog	Yes
Smart IR	Yes
Starlight	Yes

Compression Standard

Audio Bit Rate	8K~48Kbps
Audio Compression	G.711A/G.711U/ADPCM_D/AAC_LC
Video Bit Rate	32Kbps~16Mbps
Video Compression	S+265/H.265/H.264/M-JPEG

Illuminator

IR Range	200m
IR LEDs	8
IR Laser	No
IR Laser Distance	No
White Light	2
White Light Distance	30m

Pan & Tilt

3D Position	Yes
Cruise	16, up to 32 presets per cruise
Number of preset	500
Pan Range	360
Pan Speed	Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 240°/s
Pattern	8, each with 600s memory or 1000 orders
Power-off Recovery	Yes
Preset Accuracy	±0.3°
Scan	8
Tilt Range	'-16°~90° (Auto flip)
Tilt Speed	Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s

Lens

Angle of View	Horizontal：61.8° (w)~2.3° (t) Vertical：36.3° (w)~1.3° (t)
Aperture Range	F1.6~F5.3
Focal Length	6mm~264mm
Zoom Speed	<5s

Camera

Day & Night Switch	IR Cut Filter with Auto Switch
Digital Zoom	16x
Illumination	Color: 0.0008Lux@ (F1.5, AGC ON)
Optical Zoom	44×
Sensor Size	1/1.8"
Shutter Time	1s to 1/100,000s
WDR	140dB

Basic Info

Model	TC-H326M Spec: 44X/IW/A
Resolution	2.0MP (1920×1080)
Series	Pro Series Starlight
Version	V1.0

Incoming Date	0
Incoming	0
Auto Iris	support DC drive
Onboard Storage	Y(256G)
RS485	Yes
RS485 Protocol	DOME_PELCO_D，DOME_PELCO_P，DOME_PLUS
1st Stream	PAL: 50fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480) NTSC: 60fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480)
Sub Stream	PAL: 25fps (704×576, 704×288, 640×360, 352×288) NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
3rd Stream	PAL: 25fps ( 704×576, 704×288, 352×288) NTSC: 30fps ( 704×480, 704×240, 352×240)
2nd Stream	Yes
Language	16
Brands	Tiandy
P2P	Yes
RTSP	Yes
CGI	Yes
LP/SP/VTPM	Yes
Dimension-Packed	500×310×310
Dimension (mm)	222×372
Dimension (inch)	8.74×14.65
Gross Weight	8.9kg
Gross Weight (lb)	19.62lb
Net Weight	5.45kg
Per Box	2
Operating Mode	Intelligent Monitoring/Face Capture
