TC-H326S Spec 33X/I/E+/A/V3.0

Name: TC-H326S Spec 33X/I/E+/A/V3.0 - ANABON SECURITY INC
SKU: 1D.20020.000468
Price: 2150.00 CAD
Availability: OutOfStock

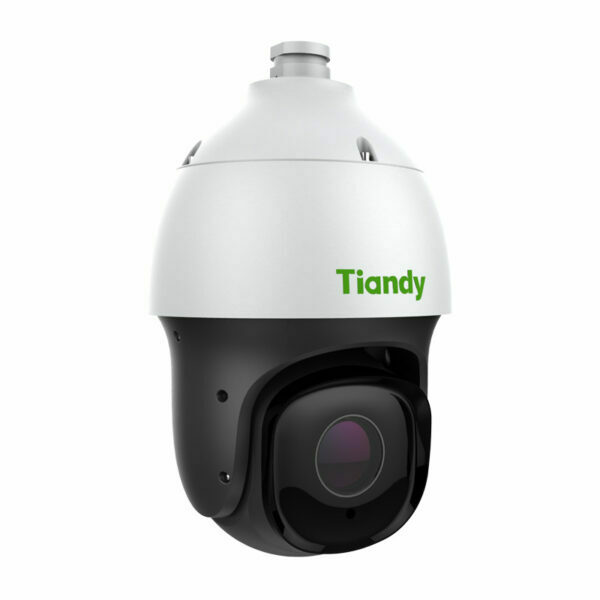

2MP 33× Starlight IR POE AI PTZ Camera

Availability:

call for availability

SKU: 1D.20020.000468

Add to wishlist

·Up to 1920X1080@30fps
·Min. illumination Color: 0.001Lux@
F1.5
·Optical zoom: 33×, digital zoom 16×
·S+265/H.265/H.264/M-JPEG
·Support Human/Vehicle Classification
·Support Auto-tracking
·Plugin Free
·POE+
·IP66

·Up to 1920X1080@30fps
·Min. illumination Color: 0.001Lux@ F1.5
·Optical zoom: 33×, digital zoom 16×
·S+265/H.265/H.264/M-JPEG
·Support Human/Vehicle Classification
·Support Auto-tracking
·Plugin Free
·POE+
·IP66

SKU: 1D.20020.000468 Categories: Pro Series, PTZ Camera

General

Impact Protection	IP66
Power Consumption	14W(IR OFF)
Power Consumption(IR ON)	24W(IR ON)
Power Supply	DC12V±10%/POE(802.3at)
Working Humidity	0-95%RH
Working Temperature	-40°~70°C (IR OFF), -40°~40°C (IR ON)

Interface

Alarm I/O	1/1
Audio I/O	1/1
Built-in Mic	No
Built-in Speaker	No
Ethernet Interface	1 RJ45 10M/100M self adaptive Ethernet port
Reset Button	Yes
SDK	Yes
Wiper	No

Network

DDNS	Yes
ONVIF	Profile S/T/G/M
Plugin Free	Yes
Remote Connection	≤7
Web Version	Web6

Face Detection and Analytics

Face Capture Rate	99%
Heatmap	Yes
Human/Vehicle	Yes
Picture Overlay	Yes
Privacy Mask	Yes
Video Analytics	Auto tracking, Demographics (People Counting), Double Tripwire, Heatmap, Loitering, Object Abandon, Object Lost, On Duty Detection, Parking, Perimeter, Safety Helmet Detection, Tripwire, Human/Vehicle Classification

Feature

Alarm Trigger	Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
Auto-tracking	Yes
EW (Early Warning)	No


3D DNR	Yes
BNC	No
Corridor Format	N/A
Frame Rate	1920×1080@30fps
HLC	Yes
OSD	16×16, 24×24, 32×32, 48×48, 64×64, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions
ROI	7 Areas for Both Main and Sub Stream, 1 Dynamic Area
Smart Defog	Yes
Smart IR	Yes
Starlight	Yes

Compression Standard

Audio Bit Rate	8kHz/32kHz/48kHz
Audio Compression	G.711A/G.711U/ADPCM_D/AAC_LC
Video Bit Rate	32Kbps~16Mbps
Video Compression	S+265/H.265/H.264/M-JPEG

Illuminator

IR Range	200m
IR LEDs	10
IR Laser	No
IR Laser Distance	No
White Light	No

Pan & Tilt

3D Position	Yes
Cruise	16, up to 32 presets per cruise
Number of preset	500
Pan Range	360
Pan Speed	Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 240°/s
Pattern	8, each with 600s memory or 1000 orders
Power-off Recovery	Yes
Preset Accuracy	±0.4°
Scan	8
Tilt Range	'-16°~90° (Auto flip)
Tilt Speed	Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 120°/s

Lens

Angle of View	H-FOV：60° (w)~2.4° (t) V-FOV：34.4° (w)~1.4° (t)
Aperture Range	F1.6~F4.3
Focal Length	4.6mm~152mm
Zoom Speed	<5s

Camera

Day & Night Switch	IR Cut Filter with Auto Switch
Digital Zoom	16x
Illumination	Color: 0.001lux@ (F1.6, AGC ON), BW: 0lux with IR
Optical Zoom	33×
Sensor Size	1/2.8"
Shutter Time	1s to 1/100,000s
WDR	140dB

Basic Info

Model	TC-H326S Spec:33X/I/E+/A/V3.0
Resolution	2MP (1920×1080)
Series	Pro Series Starlight
Version	V3.0

Incoming Date	0
Incoming	0
Auto Iris	support DC drive
Onboard Storage	Y(512G)
RS485	No
RS485 Protocol	No
1st Stream	PAL:25fps,1080p(1920×1080),960P(1280×960),720p(1280×720),VGA(640×480),4CIF(704X576) NTSC:30fps,1080p(1920×1080),960P(1280×960),720p(1280×720),VGA(640×480),4CIF(704X480)
Sub Stream	PAL:25fps,4CIF(704×576),2CIF(704×288),640×360,CIF(352×288) NTSC:30fps,4CIF(704×480),2CIF(704×240),640×360,CIF(352×240)
2nd Stream	Yes
Language	16
P2P	Yes
Brands	Tiandy
RTSP	Yes
CGI	Yes
LP/SP/VTPM	Yes
POE	Yes
Max Resolution	2MP (1920×1080)
Detail	2MP 33× Starlight IR POE AI PTZ Camera
