TC-C34UN Spec I8/A/E/Y/2.8-12mm/V4.2

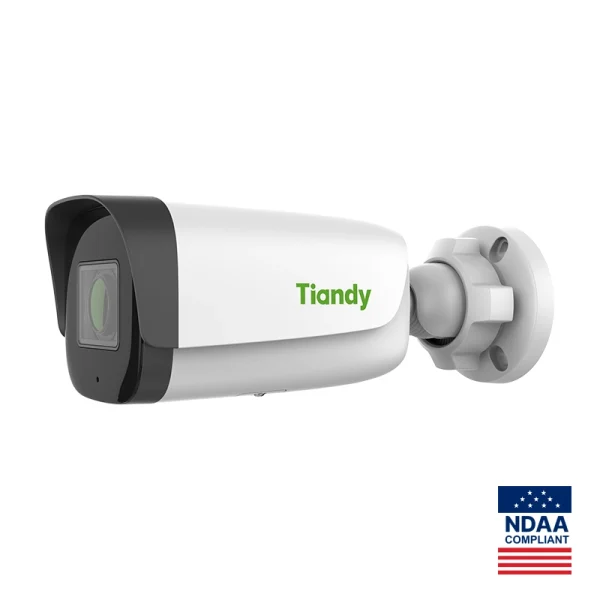

TC-C34UN: A Powerful and Versatile Bullet Camera for Professional CCTV Installations

Introduction:

The TC-C34UN is a professional-grade bullet camera designed for demanding security applications. This comprehensive guide is intended for CCTV installers and security professionals, providing in-depth details about the camera’s features, specifications, and benefits relevant to your projects.

Key Features:

• High-Resolution Image Quality: The TC-C34UN boasts a 1/2.9″ CMOS sensor that captures sharp and detailed images in resolutions up to 2688 x 1520 pixels at 25 fps. This ensures clear identification of objects and individuals, even in challenging lighting conditions.
• Motorized Zoom Lens: The camera features a motorized 2.8-12mm zoom lens, offering flexibility in adjusting the field of view (FOV) to suit specific monitoring needs. This allows you to zoom in for detailed observation or zoom out for wider coverage, maximizing the camera’s effectiveness in diverse scenarios.
• Exceptional Low-Light Performance: The TC-C34UN excels in low-light environments with a minimum illumination of 0.02 Lux (color) at F1.6. This remarkable sensitivity ensures clear and reliable video footage even at night or in dimly lit areas.
• Smart IR Technology: The camera utilizes Smart IR technology for enhanced night vision capabilities. This intelligent system automatically adjusts the IR LED intensity based on the scene, preventing image washout and ensuring optimal visibility in varying lighting conditions.
• Wide Dynamic Range (WDR): The camera incorporates 120dB WDR, enabling it to capture clear images in scenes with high contrasting light conditions. This feature is particularly beneficial for situations where bright and dark areas exist within the same frame, such as entrances or outdoor scenes under direct sunlight.
• Weatherproof Design: The TC-C34UN boasts an IP67-rated weatherproof housing, making it ideal for outdoor installations. This robust design protects the camera from dust, rain, snow, and other harsh weather conditions, ensuring year-round operation.
• Power over Ethernet (PoE) Support: The camera supports PoE, allowing for a single cable to deliver both power and data. This simplifies installation, reduces cabling costs, and eliminates the need for a separate power supply in PoE-enabled network setups.
• Onboard Storage: The camera features a built-in microSD card slot, allowing for local video storage of up to 512GB. This can be beneficial for backup purposes or recording footage in situations where network connectivity is unavailable.

Detailed Specifications:

• Image Sensor: 1/2.9″ CMOS
• Resolution: Up to 2688 x 1520 pixels at 25 fps
• Lens: Motorized 2.8-12mm zoom lens
• Minimum Illumination: 0.02 Lux (color) at F1.6
• Night Vision: Smart IR, up to 80m range
• WDR: 120dB
• Weatherproof Rating: IP67
• Power Supply: DC12V±25% or PoE (802.3af)

Benefits for CCTV Installers:

• Versatile and adaptable: The TC-C34UN’s combination of high-resolution image quality, motorized zoom lens, and excellent low-light performance makes it suitable for various applications, including perimeter security, access control, and traffic monitoring.
• Simplified installation: PoE support allows for a single cable installation, reducing complexity and saving time during setup.
• Reliable operation: The weatherproof design ensures consistent performance in harsh environments, minimizing maintenance requirements.
• Scalable storage: The onboard microSD card slot offers additional storage options for flexible recording solutions.

Conclusion:

The TC-C34UN is a powerful and versatile bullet camera well-suited for professional CCTV installations. Its high-resolution image quality, advanced features, and robust design make it a valuable asset for security professionals seeking reliable and effective surveillance solutions.
