Are you experiencing difficulties with your NVR not displaying your cameras? If so, you’re not alone. Many Installers encounter this issue when setting up their network video recorders (NVRs) for the first time. The No.1 reason behind this problem is often related to DHCP (Dynamic Host Configuration Protocol) settings. In this guide, we will delve into the world of DHCP and unveil the secrets to seamless camera integration.



What is IP Address?

An IP address (Internet Protocol address) is a unique identifier assigned to each device connected to a network. It is essential for devices to communicate with each other over the internet or a local network (LAN).

Private IP addresses are used within internal networks. They are assigned by network devices, such as routers, to identify and communicate with devices within a network. Private IP addresses have different ranges based on the class configurations of IPv4 addresses. The most commonly used private IP address ranges are:

Class A: 10.0.0.0
Class B: 172.16.0.0
Class C: 192.168.0.0

*simply put, you should choose one class and change the green part from 1 to 254.alocate unique number to each device

*there is so much more to tell about ip address but it’s not necessary for small projects and we skip that parts.

You can choose any class above for your local network between NVR and cameras

For example, a device on a LAN may have the private IP address 192.168.0.10. Private IP addresses are used to ensure the security and efficient allocation of IP addresses within a network. They can be reused on different networks without conflicts

Example:

Nvr :                                    192.168.1.10
Ip camera num 1 :            192.168.1.11
Ip camera num 2 :            192.168.1.12
Router:                                192.168.1.1





Main Topology

No.1 reason why your NVR doesn't show cameras. Learn DHCP once for ALL!





What is DHCP?

DHCP, or Dynamic Host Configuration Protocol, is a network service responsible for assigning IP addresses to network devices Automatically. When it comes to NVRs, DHCP plays a crucial role in connecting the NVR to your cameras and enabling communication between them. By automating the network configuration process, DHCP simplifies the setup and maintenance of your surveillance system. it would be better to assign static ip addresses on your cameras but with the nvr we can enable DHCP to have an automatically assigned IP address on it on the same range of network with your router, so they can communicate & find each other.

How to Configure Router as DHCP Server?

This is not your job! But if you are working on a residential project, 99% of the time internal router has enabled the DHCP Server. And if you work in an industrial or large commercial project, you can get help from a network technician.

How to Configure NVR as DHCP Client?

To configure an NVR (Network Video Recorder) as a DHCP client, follow these steps:

  1. Connect the NVR to your network using an Ethernet cable.
  2. Power on the NVR and wait for it to boot up completely.
  3. Access the NVR’s configuration settings using NVR GUI or web interface. in order to access web interface, enter the NVR’s Default IP address into the browser’s address bar.
  4. Login to the NVR’s web interface using the administrator credentials.
  5. Locate the network settings or network configuration section in the NVR’s interface.
  6. Look for the DHCP option and enable it. This will allow the NVR to obtain an IP address automatically from the DHCP server on your network.
  7. Save the settings

The NVR should receive an IP address from the DHCP server on your network. You can verify this by checking the network settings or using a network scanning tool to locate the NVR’s IP address.

Note: The exact steps may vary depending on the brand and model of your NVR, so refer to the manufacturer’s documentation for specific instructions.

Here are some examples of DHCP Setting on NVRs

No.1 reason why your NVR doesn't show cameras. Learn DHCP once for ALL!

No.1 reason why your NVR doesn't show cameras. Learn DHCP once for ALL!

No.1 reason why your NVR doesn't show cameras. Learn DHCP once for ALL!

No.1 reason why your NVR doesn't show cameras. Learn DHCP once for ALL!

Gaziray Railway Stations

Milesight comprehensive solution helps create a safer and securer environment in the Gaziray railway line in Turkey.


Organization:Gaziantep GazirayLocation:Gaziantep, TurkeyIndustry
Segment:TransportationMilesight
Partner:HAN ELEKTRONÄ°K A.Åž.Related
Products:

454 pcs of H.265+ Vandal-proof Mini Bullet Network Camera (MS-C5364-PB)103 pcs of H.265+ Vandal-proof Mini Dome Network Camera(MS-C5373-PB)8 pcs of H.265+ IR Mini Dome Network Camera(MS-C5383-PB)37 pcs of 4K H.265 Pro NVR 7000 Series (MS-N7016-UH & MS-N7032-UH)1 pc of 4K H.265 Pro NVR 8000 Series(MS-N8064-UH)


Overview

More than 600 pcs of Milesight products were deployed in Gaziantep Railway System “Gaziray”, the most prestige project in southeastern Turkey, to keep all the passengers, staff and property safe at all times.



Background

Located on the ancient Silk Road trading route, Gaziantep, one of the country’s commercial giants, is enjoying a flourishing economy while also facing an increasing traffic tension. To solve the transportation problem in Gaziantep, the Suburban System Project “Gaziray” was initiated in 2017 with the cooperation of Gaziantep Metropolitan Municipality and the Republic of Turkey State Railways with the aim of carrying 100,000 passengers every day. As the fourth rail system in the country, the whole line will cover a 25-km distance and serve with 25-30 stations. There will be fast speed trains, subway, etc. To become a favorable and reliable commuting alternative, it is essential for Gaziray to present a secure environment for passengers and staff.

Gaziray Railway Stations

Challenges

As a dispersed railway system with a large daily volume of people, 24/7 safety of everyone become the top priority of Gaziray’s surveillance system. In consideration of complicated lighting situations and management difficulties at those busy stations, it’s undoubtedly a hard task that requires cameras in every node of the railway line monitoring and recording clearly and distinctly at all times of day or night, allowing for automatic incident alerts and alarms and being connected and managed to a centralized system. Milesight is pleased to rise to the challenge, helping enhance safety and security in Gaziray.

Gaziray Railway Stations



Solution

For now, 16 stations of Gaziray had been finished and 565 cameras have been installed including 390 pcs of 5MP Vandal-proof Mini Bullet Camera(2.8mm), 64 pcs of 5MP Vandal-proof Mini Bullet Camera(6mm), 103 pcs of 5MP Vandal-proof Mini Dome Camera and 8 pcs of 5MP IR Mini Dome Camera. Additionally, there are also 32 pcs of 4K Pro NVR MS-N7016-UH, 5 pcs of 4K Pro NVR MS-N7032-UH and 1 pc of 4K Pro NVR MS-N8064-UH employed to connect and manage all cameras and to be responsible for those separate stations’ security.

Gaziray Railway Stations



Robust Cameras with High-quality Video Images

Gaziray Railway Stations

Image quality is a key criterion to evaluate the performance of a surveillance system since it plays an important role both in the pre-incident detection and post-incident investigation. All Milesight cameras chosen are featured with 5MP high resolution, 0.005Lux Starlight, 120dB Super WDR and Smart IR II Technology which can help overcome difficult lighting conditions and bring clear and detailed images in live view and recordings. Especially with WDR, the cameras can maintain image clarity even in backlight and blinding light. Apart from the above, what make Milesight products stand out in this project are also their wide FoV and the ability to reach far distance. Outfitted with IP67-rated and IK10-rated housing, they are ideal for stations and platforms.



Smart Cameras with Intelligent Video Functions

In Gaziray which is designed to transport around 100,000 people every day, you never know what kind of incidents could happen the next moment, like violence, vandalism or theft. To secure passengers, staff, and property at stations better and handle those multiple challenges more efficiently, Milesight VCA with 10 modes enables all cameras to detect incidents and send alerts to the security center automatically and immediately. The Line Crossing function became a highlight in preventing suicide and injuries near moving trains. The security operator can see a pop-up and take action instantly incidents occur.

Gaziray Railway Stations



Centralized Surveillance System with High Compatibility

So far, the project “Gaziray” is still under construction. When all stations are finished, it is planning to design a security room with video walls to observe all stations, while the video management software has not been decided yet. This uncertainty actually facilitated Gaziray’s determination of choosing Milesight offerings. Milesight solution has total flexibility to seamlessly integrate with most major video management providers and is tailored for Gaziray.

Gaziray Railway Stations



Result

By utilizing Milesight solution, an advanced, centralized and flexible surveillance system with better image quality and higher efficiency starts to take shape in Gaziray. Now, 85% of the construction work has been completed and it is expected to be finished by the end of 2021. There will be more Milesight products installed to secure and safeguard Gaziray.

Guarding the Shining Pearl Between Magnificent Saigon

Milesight Comprehensive Surveillance System Assures the Maximum Security for the 1354 Apartments

Guarding the Shining Pearl Between Magnificent Saigon
Organization:Sunwah Pearl Binh Thanh ApartmentLocation:Ho Chi Minh, VietnamIndustry Segment:ResidentialMilesight Partner:Intelligent Technology Services Joint Stock CompanyRelated Products:213 pcs – 5MP H.265+ Vandal-proof Mini Bullet Network Camera
(MS-C5364-FPB)127 pcs – 2MP H.265+ Vandal-proof Motorized Mini Dome Network Camera
(MS-C2973-PB)14 pcs – 5MP 12X H.265+ Mini PTZ Bullet Network Camera
(MS-C5361-EPB)8 pcs – 2MP 30X H.265+ Speed Dome Network Camera
(MS-C2941-X30RPB)2 pcs – 12MP H.265+ Fisheye Network Camera
(MS-C9674-PB)6 pcs – 4K H.265+ Pro NVR 8000 Series
(MS-N8064-UH)1 pc – 4K H.265+ Pro NVR 7000 Series
(MS-N7032-UH)

Overview

At the luxury Sunwah Pearl Binh Thanh Apartment, Vietnam, 364 pcs of Milesight network cameras and 7 pcs of Milesight NVRs are installed in all its public areas to protect safety of residents and employees, creating a safe and comfortable living environment.

Background

Sunwah Pearl Apartment project is located in an excellent position at 90 Nguyen Huu Canh, Ho Chi Minh City. This project is considered a masterpiece of Sunwah Group, represented by the Sunwah brand associated with the image of a precious pearl in the splendid Saigon.

Guarding the Shining Pearl Between Magnificent Saigon

Challenges

As a high-class apartment in Vietnam, the safety of residents and employees is always the first concern in implementing a residential surveillance solution. Sunwah Pearl has a total of 1354 apartments, so how to minimize damage to the common areas of the building? How to reduce the likelihood of break-ins? How to prevent costly repairs that must be made in the event of vandalism or theft? Milesight surveillance solution has the answer.

Solution

Milesight provides a comprehensive solution of video surveillance to secure the apartment. The whole surveillance system is combined with different types of Milesight network cameras and a back-end management system. All devices are deployed across front gate, multiple floors, parking lot as well as management center. Let’s take a tour!

Front Gate — PTZ Bullet&Speed Dome Camera, No Boundary of Distance

The Sunwah Pearl is covered an area of 19,000 meter square and surrounded by busy traffic and complex location. Milesight PTZ Bullet Camera and Speed Dome Camera are deployed in every direction outside the apartment. These cameras not only offer wide area coverage and all-round monitoring, but also allow the security guards to monitor distant subjects while still maintaining the clarity, delivering high quality video over the entire zoom range. It greatly deters suspicious activities and gives residents peace of mind.

Guarding the Shining Pearl Between Magnificent Saigon

Lobby&Hallway — Fisheye, Zero Blind Spots

Milesight 360° Panoramic Fisheye Network Camera is installed in both apartment lobby and corner of hallway. It is capable of shooting images with 12MP ultra high resolution and 360° surrounding view. The body design of the fisheye camera is perfectly matched with architectural space, protecting the residents and staff without being noticed.


Parking Lot — Types of Network Cameras, 24×7 All-around Protection

Parking lot is dim, while the starlight camera delivers high detailed color images even in the low light environments reaching 0.002Lux without any supplementary lighting. Featuring IK10-rated vandal-proof casing, Milesight cameras are able to withstand harsh vandalism, which provides 24×7 protection for vehicles and property of residents. Apart from features that mentioned above, LPR is also applied in Milesight Network Cameras. It effectively detects and captures license plate in real time. Embedded with Black and White list inside the cameras, it takes appropriate action such as generating an alert once the license plate is on the predefined blacklist.

Guarding the Shining Pearl Between Magnificent Saigon

Management Center — NVR&CMS, 24×7 All-round Protection

A total of 340 cameras are well managed by Milesight 4K Pro NVR 8000 Series. It provides up to 80TB storage capacity. Powerful decoding performance ensures consistent monitoring and recording. N+1 hot spare function prevents data loss from unexpected devices’ errors. Additionally, CMS is a vital software system for building managers to check live view and playback through video wall at any time. If any accidents occur, they can quickly locate the premise and coordinate in response.

Guarding the Shining Pearl Between Magnificent Saigon

Video









Result

Milesight is much more of a super guardian, rather than just a security system. We use the comprehensive solution for the day-to-day management of our operation.” Milesight surveillance solution has won high praise from the board of Sunwah Pearl Apartment.

Al Reef Villas Project in UAE

Challenges

Al Reef Villas is the first planned community in the UAE exclusively for the middle income tier of the population. It is a large scale residential community, which is divided into villa clusters grouped in four distinct architectural themes, Arabian, Desert, Mediterranean and Contemporary with a central down town area.

Al Reef villas will comprise over 2300 villas, over 1800 apartments in a mix of studios, a four star hotel and a retail area. Such a commerce and residence area will be need surveillance security for local property management. One side of this villas community is adjacent to the high way, in addition to its special geographic position—located near Al Raha Beach and Abu Dhabi International Airport. A reliable cctv system will be required from the property developer for each villa.

Al Reef Villas Project in UAE

Solutions

The relevant Consultants have been appointed to release a tender for this project. The Consultant intends to select a master system Integrator by competitive process to design, develop, implement and maintain a surveillance security system for both commerce and residence area for a period of 5 years after system go live. Our local distributor reached to a SI company, who has won the finalist qualification for this project. Finally the project entered the stage of comparing the image effects of manufacturers’ products: Tiandy’s Super starlight bullet and dome camera integrates with 20 channels, 2HDDs NVR to combine as a basic system for each Villa resident user. During the PoC phase of this project, Tiandy’s remarkable video image has emerged from the other two competitors. Consultants pointed out Tiandy products to SI.

Al Reef Villas Project in UAE Al Reef Villas Project in UAE

Benefits

Over 200pcs of Super starlight cameras and 10 NVRs installed around the whole community. The solution protects resident property safe. The camera used at commercial area shows great stability and performance at all the night and day time. The villa project is right now in the stage1, Tiandy will continue provided integrating surveillance solution for this upcoming project.

VIDEO SURVEILLANCE SOLUTION SECURES JACKSONS INTERNATIONAL AIRPORT

Milesight Solution Contributed to the security of the APEC Papua New Guinea 2018

Organization:Jacksons International Airport
– NAC_APEC VIP TerminalLocation:Papua New GuineaIndustry Segment:AirportMilesight Partner:J-group Holdings LimitedRelated Products:H.265+ Motorized Pro Dome NetworkCamera (MS-C5372-FPB)H.265+ Motorized Pro Bullet NetworkCamera (MS-C5362-FPB)H.265+ PoE Speed Dome NetworkCamera (MS-C5342-PB)Milesight CMSMilesight Network Keyboard (MS-K02)

Overview

A whole Milesight solution including professional Network Cameras and Central Management System CMS were applied in APEC VIP Terminal, Jacksons International Airport. As a significant site for the very important persons of the APEC meetings, the terminal’s safety is well guaranteed by Milesight professional and multifunctional products.

Background

APEC Papua New Guinea 2018 was the year-long hosting of Asia-Pacific Economic Cooperation (APEC) meetings in Papua New Guinea. The National Airports Corporation (NAC) agrees with the principles under the APEC Concept of Operations (CONOPS) and in conjunction with the key points set out regarding the basic Security Strategy requirements identified from the internal risk assessment conducted by NAC and relevant airport stakeholders.



Challenge

Due to the high requirements for safety, security and monitoring for APEC VIP delegates, Jacksons International Airport’s VIP Terminal was required to provide maximum viewing of the whole area concerned and detailed images for clearly knowing about the situations. Further more, an easy-to-use and powerful solution was needed for safeguarding the important VIP terminal. All those resulted in the selection of Milesight products.

Solution

Different network camera models cooperating with Milesight CMS formed a strong line of defense to ensure the safety of the VIP terminal. The H.265+ Motorized Pro Bullet Network Cameras and H.265+ PoE Speed Dome Network Cameras were mainly installed in the outdoor environments in the application while the H.265+ Motorized Pro Dome Network Cameras were employed mainly for indoor areas.

5MP High-definition & Quality Images

Catching detailed images with better quality is great helpful for getting the situation monitored. “The network cameras offer quality images even with minimum lighting.” the performance of the network cameras is obvious from the comment of the airport. The 5MP high resolution network cameras became the eyes of the VIP terminal regardless of any complicated lighting condition. No details missed!

VIDEO SURVEILLANCE SOLUTION SECURES JACKSONS INTERNATIONAL AIRPORT

Easy-to-use and Powerful Solution

The ease of use is highly praised from installation to use. The convenient installation, the considerable structure design, the specific features like PoE supporting and user-friendly interface all those brought great user experience, making the actual application enjoyable. And with Milesight CMS, the strong solution made the line of defense for VIP terminal an unbreakable one with advanced features like the PTZ, motorized lens, P-Iris, Smart IR II, 140dB Super WDR, 0.001lux starlight visibility, etc.

VIDEO SURVEILLANCE SOLUTION SECURES JACKSONS INTERNATIONAL AIRPORT

All-round Monitoring

All the areas are under watching by Milesight network cameras with the specific product portfolio especially the H.265+ PoE Speed Dome Network Cameras. With 360° endless pan, 90° tilt and maximum 30x optical zoom. No blind spot exists. The VIP terminal were a totally safe place under the guarding of Milesight network camera. No potential crisis has a place to go.

VIDEO SURVEILLANCE SOLUTION SECURES JACKSONS INTERNATIONAL AIRPORT

Result

The APEC Papua New Guinea 2018 was successfully hold. As the protector of the VIP terminal, Jacksons International Airport, Milesight contributed to the security of the event. And the solution is still working for bringing its value to the airport. The quality image, ease of use, powerful features and all-round monitoring experience beyond the airport’s expectation, and the solution is going to keep devoting itself to bringing reliable safeguard.

Rabati Castle, Georgia

Akhaltsikhe, Rabati Castle , Georgia

Area: 70,000㎡

 Rabati Castle, Georgia Rabati Castle, Georgia Rabati Castle, Georgia Rabati Castle, Georgia

Rabati Castle, Georgia is now home to a DLB 5-90n/5-15n surveillance network. With 1440p@25fps over multiple links averaging 1km, Tiandy Georgia says that LigoWave delivers stream stability, low latency & simplifies deployment & maintenance.

Historical information: https://en.wikipedia.org/wiki/Rabati_Castle

Technical task:Installation of video surveillance systems without damaging the aesthetic beauty of the castle, use of wireless network devices for stable transmission of video stream.

Tiandy CCTV:

TC-NC414 – 10 pic

4MP bullet camera

Average distance between BS and CPE – 1km

Camera video stream parameters:

Resolution – 1440P @25fps

Video Bit Rate – 3 Mbps

Benefits of using LigoWave devices:

Ensuring the transmission of a stable video stream

Zero delay when transmitting a video stream

Resistance to thunderstorms (no metal box)

Modern design and small size

– Easy installation

– User-friendly interface for the end user

Safeguards Lafarge PV Solar System for The Electricity Supply

Lafarge PV Solar Plant applied Milesight Network Cameras for round-the-clock security in Tafilah, Jordan




Organization:Lafarge Cement JordanLocation:Tafilah, JordanIndustry Segment:IndustrialMilesight Partner:Soltek Solutions TechnologyRelated Products:Motorized Pro Bullet Network Camera(MS-C5362-FIPB)Weather-proof Mini Dome Network Camera(MS-C5375-PB)Speed Dome Network Camera(MS-C5342-PB)4K H.265 Pro NVR 7000 Series(MS-N7032-UH)

Overview

Milesight, the best-in-class IP surveillance solution provider, is helping to ensure a safe and reliable electricity supply for Lafarge PV Solar System in Tafilah, Jordan. With the deployment of a remote surveillance monitoring solution, the perimeter of the plant has been covered by a solid protective shield.

Background

Lafarge PV Solar plant site is located in the Lafarge Cement Plant in the South East of Jordan about 25km of the King Hussein Highway next to Rashdiya city in the government of Tafilah. Built in December 2017, it is a large-scale plant with approximately 28 hectares 1590 meters above the sea level elevation aiming at providing power for Lafarge Cement Plant.

However, in recent years, this critical power infrastructure has become the target for PV module theft, cable theft and other related crimes, resulting in vastly expensive and disruptive damage and losses to the power provider and users. As such, it is necessary to protect the most vulnerable and remote PV Solar plant site with the latest electronic security solution to effectively prevent and combat this problem.

Safeguards Lafarge PV Solar System for The Electricity Supply

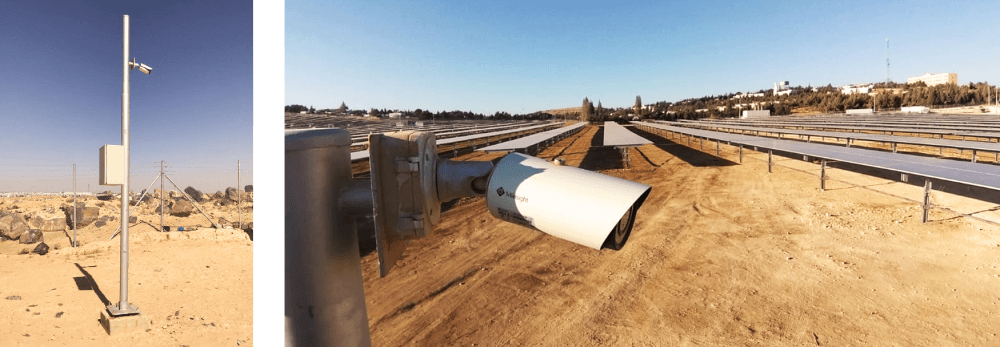

Severe Installation Environment, Tough Challenges

Safeguards Lafarge PV Solar System for The Electricity Supply

As the technology blueprint planned to install the cameras covering the plant perimeter to detect and deter the intruder while set the central management in the control building, then how to record the critical and effective videos via cameras and get the remote connection became the key parts. It required the cameras to be scenario-adapted with certain must-have functions working in the difficult weather and light conditions, which was really challenging.

Solution

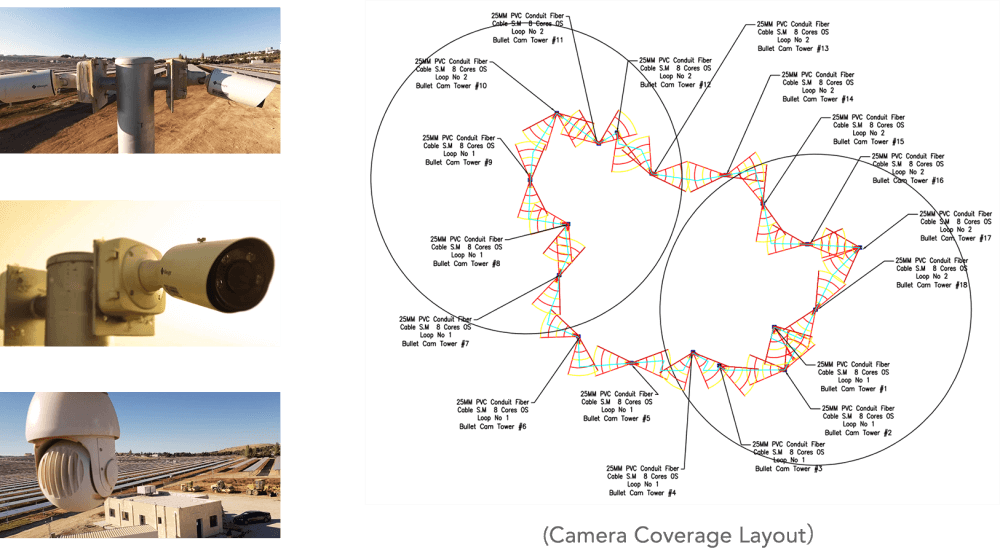

Through the rigorous technology planning, two fiber loops were adopted to link the 18 camera towers around the plant perimeter to realize the data transmission to the control room, integrating the videos from Milesight Pro Bullet Cameras and Speed Dome Cameras to Milesight NVRS for remote connection and central management. In the meanwhile, there were the power system and a switch in each camera tower to supply the power and network for cameras.

Safeguards Lafarge PV Solar System for The Electricity Supply

Solid Protective Shield

In terms of the plant base, it was designed with long-focus lens Milesight Motorized Pro Bullet Cameras on the poles via linking to Milesight Speed Dome Cameras covering the perimeter area. Equipped with 5MP Resolution, 120dB Super WDR, 0.005Lux Ultra-low Light, P-Iris, Smart IR II with up to 100 meters IR Range and HLC Function, Milesight Pro Bullet Cameras were the unparalleled choices to provide superb clear images day and night. Moreover, with the Smart VCA, if there is any intrusion like line crossing, the alarm would be triggered so as to make the Speed Dome Cameras as conjunction together Pan/Tilt/Zoom to the alarmed area to record instant on-site information. Supported by 3D Positioning, PTZ Auto Tracking and Smart PTZ Motion Detection, the Speed Dome Cameras would not miss any suspicious motion. In this case, Milesight cameras, with the IP67 & IK10 housing for long lifespan even in the tough conditions, worked like perimeter intrusion detection systems (PIDS) to secure the inside plant without any intrusion.

High-speed Response & Central Management

Recorded locally to Milesight 4K Pro NVRs in the control room, Milesight Cameras were fully integrated with NVRs for central management. Due to the superior performance and system stability, the NVRs ensured the high-quality of local recording needed. In addition, by perfectly integrated with Milesight Cameras, Milesight NVRs could almost complete all the configurations and management of the cameras as well as the alarm settings and Smart VCA. With the monitors linking to NVRs, in the event of an automated intruder alert being activated to indicate unauthorized movement on-site, the operator could monitor the full-scale perimeter and visually verify the accident in seconds, examining the live view and high-resolution images, then quickly respond to the accident.

Safeguards Lafarge PV Solar System for The Electricity Supply

Result: Effective Protection

The project has been completed for quite a long period, and Lafarge PV Solar System has been well protected by Milesight solution making a splendid difference to the provision of the reliable electricity to Lafarge Cement Plant.

Transform Your Workspace into Smart Office



Transform Your Workspace into Smart Office

In recent years, the workspace and the way we work have gone through a massive transformation, making offices smart. By leveraging smart technology, the smart office can help businesses work more productively and efficiently. To achieve this goal, Milesight offers CoWork Solution to transform your workspace into a smart office to help boost productivity, improve collaboration, reduce energy consumption and enhance security. It aims to build a workspace that works for the present and explore the potential of the future of work.

CoWork Smart Office Solution



Transform Your Workspace into Smart Office

Build an optimal workspace for employees and company owner is always a daunting task. Milesight offers a turnkey smart office solution for you to solve unenviable office problems and to explore the potential of workspace, including everything you need to build your own applications. CoWork Smart Office Solution consists of several office end devices, one LoRaWAN® gateway and a cloud platform, giving you tools to complete various office tasks, such as vacant meeting room finding, door opening alert, light auto control and so on.

  Typical Applications Room/Desk Occupancy Monitoring

Sometimes, finding vacant meeting rooms and desks is a time-consuming task. Based on advanced AI identification and analysis technology, AI Workplace Occupancy Sensor is designed to solve this problem by monitoring occupancy & utilization, which can reach up to 98% recognition rate and keep 100% anonymous.

  Door/Window Monitoring

Magnetic Contact Switch enables you to simply know when someone enters the office/building through door/window. Instead of using a reed switch, Magnetic Contact Switch integrates a hall effect sensor to detect the opening and closing of door/window, which significantly improves reliability, security and operation life.

  Auto Lighting

By detecting the human presence and light level, WS202 PIR & Light Sensor can work with WS558 Smart Light Controller to automatically turn on/off lights to avoid extra light power consumption which contributes to the high electric bills.

  Standby Power Consumption Reduction

Standby power consumption is imperceptible but overall consumption is unexpectedly huge. Here is the solution: connecting WS52x smart portable socket to appliances and closing them after work.

  Emergency Alert

Quickly sending alerts is vital in many scenarios. Milesight WS101, a LoRaWAN® -based smart button, supports multiple press actions, all of which can be defined by the user to send customized alerts at their fingertips.

  CoWork Smart Office Solution Devices

Transform Your Workspace into Smart Office

The Benefits of  CoWork Smart Office Solution Employee Benefits

Smart offices are highly beneficial for employees. The smart office solution truly boosts the employee experience and bring out the best at work by simplifying their day-to-day activities:

  • Quickly jump into a free meeting room or shared desk
  • Quickly control other devices just with one button
  • More to explore, contact us.

  Management benefits

Smart office solution contributes to a great ROI  in several ways by enabling company admins to gain valuable insights from analytics and make data-driven decisions to build a workspace that takes their business to the next level.

  • Shared spaces & meeting rooms optimization
  • Appliances performance and power consumption monitoring
  • Tasks automation
  • Office security improvement
  • More to explore, contact us.

Smart Irrigation Solution with AgTech



Smart Irrigation Solution with AgTech

Banana plantations require an ample and frequent irrigation, but deficits of water could adversely affect crop growth and yields. And this is where smart irrigation comes into the picture. Compared to rainfed production with seasonal differences, smart irrigation could provide regular water supply over the total growing season which will lead to taller plants, greater leaf area, and result in earlier shooting and higher yields.

  Challenges

  • Timely irrigation could not be achieved efficiently

Being a crop with long duration to yield, bananas need a great deal of water, varying from 1,200 mm in the humid tropics to 2,200 in the dry tropics. However, due to limited number and energy of manpower, the timely irrigation could be difficult to achieve.

  • Overwatering and waste run-off may occur

Interval between irrigation has an obvious effect on yields. The more balanced the intervals, the higher the yields.

  Solution

Milesight offers the whole smart irrigation solution including soil moisture sensor, solenoid valve controller and UG67 Outdoor LoRaWAN® getaway. By adopting Milesight smart irrigation, the operations could be more streamlined, resulting in savings in water, energy costs, and time. When the soil moisture sensor detects deficiency, it will send out alert to cloud management system so as to inform the users through app notification or emails. The users could manage irrigation remotely based on data through solenoid valve controller. Moreover, by adopting LoRa, it consumes less power and hence battery will last for longer duration. Also, the whole smart irrigation solution is easy to deploy due to its simple architecture.

  Featured Products –Soil Moisture Sensor –Solenoid Valve Controller –UG67 Outdoor LoRaWAN® Getaway

 Soil Moisture Sensor

Smart Irrigation Solution with AgTech

EM500-SMTC provides an external probe for receiving accurate and instantaneous information on soil moisture content, temperature, and electrical conductivity. It is an important tool for anyone to solve problems related to soil.

Solenoid Valve Controller

UC51x series LoRaWAN® wireless solenoid valve controller is used to remotely control DC latching solenoids of the valve. Also, UC51x series provides both solar and built-in battery power supply for uninterrupted operation.

UG67 Outdoor LoRaWAN® Getaway

UG67 is a robust 8-channel outdoor LoRaWAN® gateway. Adopting SX1302 LoRa chip and high-performance quad-core CPU, UG67 supports connection with more than 2000 nodes. UG67 has line of sight up to 15 km and can cover about 2km in urbanized environment, which is ideally suited to smart office, smart building and many other outdoor applications.

 Benefits

  • High Yield

By providing what is needed to plans in accordance with temperature, humidity and other relevant data collected from sensors, Milesight’s smart irrigation solution will ensure a uniform and homogenous distribution of water in proper and regular doses.

  • A Virtuous Cycle of Plantation

By using smart irrigation, golden circle will be established thanks to productivity enhancement and crop quality improvement.

  • You Can Save Your Bills

The high efficiency of water usage and manpower will significantly save the expenses that you would have incurred using other watering methods. Increase of profits would be more notable by using this method.

IoT and AI: A Winning Combination

IoT and AI: A Winning Combination

For years, Milesight is passionate about creating a better IoT world through the utilization and development of innovative sensing products and technologies. With a focus on delivering sensing insights that can develop new possibilities in the IoT world, Milesight leverages advanced sensing technologies such as AI, 5G, D2D, and LoRaWAN® to enhance the quality of life for individuals and revolutionize industries.

IoT and AI: A Winning Combination

IoT and AI: A Winning Combination

The Internet of Things (IoT) and Artificial Intelligence (AI) are two technologies that have the potential to transform the world we live in. IoT refers to the concept of connecting devices to the internet, enabling data exchange between connected devices. AI involves computer systems and machines that mimic human intelligence processes. The combination of IoT and AI is reforming many industries and environments, effectively improving data collection and enhancing data management and analytics. They have the potential to create a smarter, more connected world that is better equipped to meet the challenges of the future.

For example, the convergence of IoT and AI is reshaping the landscape, offering unprecedented capabilities that can revolutionize the way we optimize space utilization. Many organizations struggle with managing their workspace effectively. Unused spaces, underutilized areas, and overcrowded zones can lead to inefficiencies and wasted resources. Milesight’s AI Workplace Occupancy Sensor is an excellent example of how IoT and AI can enhance space utilization. The sensor uses machine learning algorithms to detect people and objects in real-time and transfer data via LoRaWAN® technology, identifying areas of underutilization that can be repurposed or reconfigured, reallocating resources to areas of high usage, and optimizing cleaning schedules based on actual usage. It enables building and office managers to gain actionable sensing insights on space occupancy and utilization and optimize their workspace based on actual usage.

As we move forward, we can expect to see more innovations in space management, leveraging the power of IoT and AI to improve building operations and drive growth.

The Game-Changing Role of 5G in the IoT

IoT and AI: A Winning Combination

5G, or fifth-generation wireless technology, is the latest broadband cellular network standard that offers unparalleled features such as low latency, high capacity, and increased data bandwidth. This makes it a game-changer across multiple industries and application scenarios, including Smart City, Smart Factory, and Public Security.

Milesight leverages 5G technology as a cornerstone of its product matrix, enabling groundbreaking possibilities for the Internet of Things (IoT). For example, Milesight’s 5G AIoT 4X/12X Pro Bullet Plus Network Camera combines IoT, AI, and 5G technologies to deliver intelligent traffic and public security solutions. With this innovative solution, traffic flow can be monitored and managed in real-time, ensuring smoother transportation. The network camera’s advanced features, such as license plate recognition, enable quick identification of suspects and help law enforcement agencies keep citizens safe.

Moreover, Milesight’s other 5G products, including the UF31 5G Dongle, UF51 5G CPE, and UR75 5G Industrial Cellular Router, can provide reliable and secure 5G connectivity for different IoT applications such as city infrastructure, smart traffic, smart factory, and smart grid. By enabling high-speed data transfer and reduced latency, these products can help organizations gain real-time sensing insights and make data-driven decisions, ultimately improving their bottom line.

Overall, 5G technology is proving to be a game-changer for the IoT landscape, enabling businesses and organizations to achieve unprecedented levels of operational efficiency and safety. With Milesight’s cutting-edge products and solutions, businesses and organizations can unlock the full potential of 5G technology and revolutionize the way they operate.

Innovative IoT Solutions Powered by LoRaWAN®

IoT and AI: A Winning Combination

The LoRaWAN® protocol is a revolutionary Low Power Wide Area Networking (LPWAN) communication protocol that enables seamless wireless connectivity between physical objects and the internet. Whether it’s smart agriculture, intelligent transportation, or industrial automation, the LoRaWAN® protocol provides a reliable, secure, and cost-effective solution for connecting IoT devices to the internet.

For years, Milesight is dedicated to developing LoRaWAN® sensors, gateways, and controllers. With a team of world-class engineers with extensive experience and innovative spirit, Milesight has built a powerful R&D strength and product delivery capability in the LoRaWAN® field. Milesight provides various solutions, including IAQ Solutions, Smart Building Solutions, and Energy Efficiency Solutions for different scenarios, bringing better convenience and efficiency to people.

In Canada, Milesight has partnered with several companies in Canada to deploy tens of thousands of LoRaWAN® sensors and gateways in commercial offices and educational campuses. The installation of over 47,000 Milesight AM107 indoor air quality sensors in schools ensures that students and school staff have the best possible learning and working environment.

Furthermore, more than 4,400 Milesight sensors and gateways, which include indoor ambience temperature, humidity, carbon dioxide concentration, and occupancy sensors, were deployed in over 62 buildings. This deployment enables local building managers to monitor building data and forecast peak hours of energy usage. As a result, they can provide data-driven recommendations to reduce lighting or HVAC usage in buildings, which can lead to greater efficiency and cost savings.

Unlock Seamless Connectivity with Milesight’s Unique D2D Technology

IoT and AI: A Winning Combination

Milesight D2D is a unique D2D (Device to Device) protocol developed by Milesight, enabling seamless communication between different Milesight LoRaWAN® node devices without the need of a LoRaWAN® gateway. With the exclusive Milesight LoRa®-based protocol, Milesight LoRaWAN® devices can easily communicate with each other within a second, without any involvement of network infrastructures.

The benefits of Milesight D2D are manifold. For instance, Milesight Smart Wall Switch WS50x can function as an agent in Milesight D2D topology. When Milesight PIR & Light Sensor WS202 detects human presence, it can immediately turn on the lights via WS50X through Milesight D2D communication, without the involvement of gateways.

Other benefits of Milesight D2D include:

  • Private LoRa protocol with Milesight-only node support
  • Battery-operable devices on both ends, low power consumption
  • Same long transmission distance as LoRa®
  • Secure transmission like LoRaWAN®
  • Low latency (less than 1 second when devices are in the same room)
  • No additional hardware is required
  • Asynchronous protocol: no useless beacons and no need for time synchronization

Experience the convenience of Milesight D2D for seamless communication and smarter control of devices.

Summary

In this era of promising AI, IoT, 5G and LoRaWAN® technology, Milesight is committed to providing valuable insights and breaking through the limitations of the IoT world. We understand that the true value of IoT solutions lies in their ability to provide real-time sensing insight, allowing businesses to make informed decisions based on accurate data.

We are committed to staying ahead of the curve and exploring new opportunities to harness the power of IoT technologies with our clients to create a smart, better, and more connected world.

SHOPPING CART

close
