LoRaWAN® Gateway
SG50
Ultra Low Power Solar LoRaWAN® Gateway
UG63
Mini LoRaWAN® Gateway
UG56
Industrial LoRaWAN® Gateway
UG65
Indoor LoRaWAN® Gateway
UG67
Outdoor LoRaWAN® Gateway
UPS01
Uninterruptible Power Supply
0:16
0:16

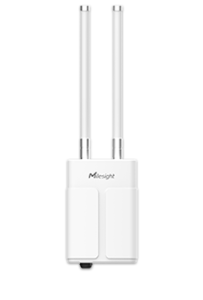

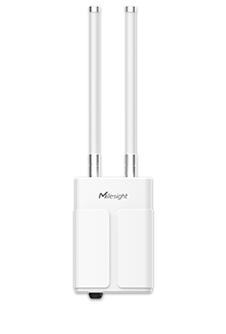

Outdoor LoRaWAN® Gateway
- IP67 Rating
- 64-bit Quad-Core Processor
- New SX1302 LoRa Chip
- Built-in Supercapacitor
- Multiple Backhaul Connectivities
- Embedded Network Server
- Compatible with Multiple Network Servers
- Global LoRaWAN® Frequency Plans
Ultra Low Power
Solar LoRaWAN® Gateway
Powering LoRaWAN® Connectivity with Sunlight
- Built-In Rechargeable Batteries & Solar Panel
- Supports Typical Use for Up to 4 Days Without Sunlight
- Supports Cellular Backhaul Network
- Easy Deployment, Even in Remote Regions
- Highly Efficient & Advanced Power Management Design
- Highly Compatible with Mainstream Network Servers
VIDEO
MODELS
DOWNLOAD
VIDEO
Empowering Connectivity in Remote Frontiers
SG50 facilitates connectivity in remote areas, combining solar power, a built-in battery, 4G communication, and advanced remote management. It enables wire-free deployment and independent operation in challenging environments.
MODELS
Specifications
| Hardware System | |
|---|---|
| CPU | Dual-core 240MHz, 32-bit Xtensa® LX7 |
| Memory | 8 MB PSRAM |
| Flash | 16 MB |
| LoRaWAN® | |
| Antenna Connector | 1 × 50 Ω N-Female External Connector |
| Channel | 8 (Half-duplex) |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -140 dBm Sensitivity @292bps |
| Output Power | 27 dBm Max |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| LBT1 | Support |
| Cellular Interface | |
| Network | 4G LTE (CAT 1)/GSM |
| Antenna | 1 × External Antenna (Share with GPS) |
| Cellular Band | L08GL (Global except North America): LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66 LTE-TDD: B34/38/39/40/41; GSM: B2/3/5/8 L09NA (North America): LTE-FDD: B2/4/5/12/13/66 |
| SIM Slot | 1 (Nano SIM-4FF) |
| Wi-Fi Interface | |
| Antenna | 1 × External Antenna |
| Standards | IEEE 802.11b/g/n, 2.4 GHz |
| Mode | AP Mode (Device Configuration Only) |
| GNSS | |
| Technology | GPS |
| Antenna | 1 × External Antenna (Share with Cellular) |
| Others | |
| Button | 1 × Reset/Wi-Fi Button |
| Console Port | 1 × USB 2.0 (Type-C) for Power Supply and Console |
| LED Indicators | 1 × SYSTEM, 1 × LTE, 1 × Wi-Fi |
| Built-in | Watchdog, Timer |
| Power Supply and Consumption | |
| Power Supply | 1. Solar Power or DC Power (12~24VDC) via M12 Connector 2. 3.6V, 25000mAh Backup Batteries 3. 5V, 2A by Type-C Port |
| Battery Life2 | Up to 4 Days Without Sunlight |
| Power Consumption | Typical 0.8W |
| Physical Characteristics | |
| Ingress Protection | IP67 |
| Housing & Color | Metal Cast Aluminum, White |
| Weight | 1.275 kg (Without Batteries), 1.755 kg (With Batteries) |
| Dimensions | 250 × 157.5 × 46mm (9.84 x 6.20 x 1.81 in) |
| Installation | Wall or Pole Mounting |
| Environmental | |
| Operating Temperature | -30°C to +70°C (-22℉ to +158℉) |
| Charging Temperature | -20°C to +50°C (-4℉ to +122℉) |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) |
| Relative Humidity | 0% to 95% (Non-condensing) at 25°C/77℉ |
1AU915 and US915 do not support LBT.
2Tested under laboratory conditions and for guideline purposes only.
DOWNLOAD
Uninterruptible Power Supply
High Capacity up to 12000 mAh
Compact Design with IP67 and IK08 Protection
- High Capacity, Long Endurance, Plug and Play
- Data Protection
- Plug and Play
- Real-time Alarming
- Tricolor Indicators
Mini LoRaWAN® Gateway
Mini Meets Mighty
- Compact and Eye-catching Design
- Cost-Effective for Small-Scale Deployments
- Supports Cellular and Ethernet Backhaul
- Wire-Free Deployment with 4G
- Highly Compatible with Mainstream Network Servers
- Blind Spot Coverage
- Global Frequency Plans
- Remote Configuration and Management
VIDEO
MODELS
DOWNLOAD
VIDEO
MODELS
| Hardware System | |
|---|---|
| CPU | Dual-core 240MHz, 32-bit Xtensa® LX7 |
| Memory | 8 MB PSRAM |
| Flash | 16 MB Flash |
| LoRaWAN® | |
| Antenna Connector | 1 × External Antenna |
| Channel | 8 (Half-duplex) |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| Cellular Interface (Optional) | |
| Network | 4G LTE (CAT 1)/GSM |
| Antenna | 1 x External Antenna |
| Cellular Band | L08GL (Global except North America): LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66 LTE-TDD: B34/38/39/40/41; GSM: B2/3/5/8 L09NA (North America): LTE-FDD: B2/4/5/12/13/66 |
| SIM Slots | 1 (Micro SIM-3FF) |
| Ethernet Interface | |
| Port | 1 × RJ45 WAN Port |
| Physical Layer | 10/100 Base-T (IEEE 802.3) |
| Data Rate | 10/100 Mbps (Auto-Sensing) |
| Interface | Auto MDI/MDIX |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Wi-Fi | |
| Standards | IEEE 802.11b/g/n, 2.4 GHz |
| Mode | AP Mode (Device Configuration Only) |
| Others | |
| Button | 1 × Reset Button |
| Console Port | 1 × USB 2.0 (Type-C) for Power Supply and Console |
| LED Indicators | 1 × SYSTEM, 1 x LTE |
| Built-in | Watchdog, Timer |
| Power Supply and Consumption | |
| Power Input | 1. 5V by Type-C Port 2. 5~12V DC by 3.5mm 2-pin Terminal Block 3. 802.3af standard PoE input by (Optional) PoE Splitter |
| Power Consumption | Max 3.1 W |
| Physical Characteristics | |
| Ingress Protection | IP30 |
| Dimensions | Ф 115 x 21 mm (Ф 4.52 x 0.83 in) |
| Color & Material | White, PC + ABS |
| Installation | Desktop, Wall or Ceiling Mounting |
| Environmental | |
| Operating Temperature | -20°C to +50°C (-4℉ to +122℉) |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
| Approvals | |
| Regulatory | CE, FCC |
| Environmental | RoHS |
