IP Camera, Pro Series, Turret

TC-C35SS Spec I5/A/E/Y/M/H/2.7-13.5mm/V4.0

Name: TC-C35SS Spec I5/A/E/Y/M/H/2.7-13.5mm/V4.0
SKU: 1D.20010.002310

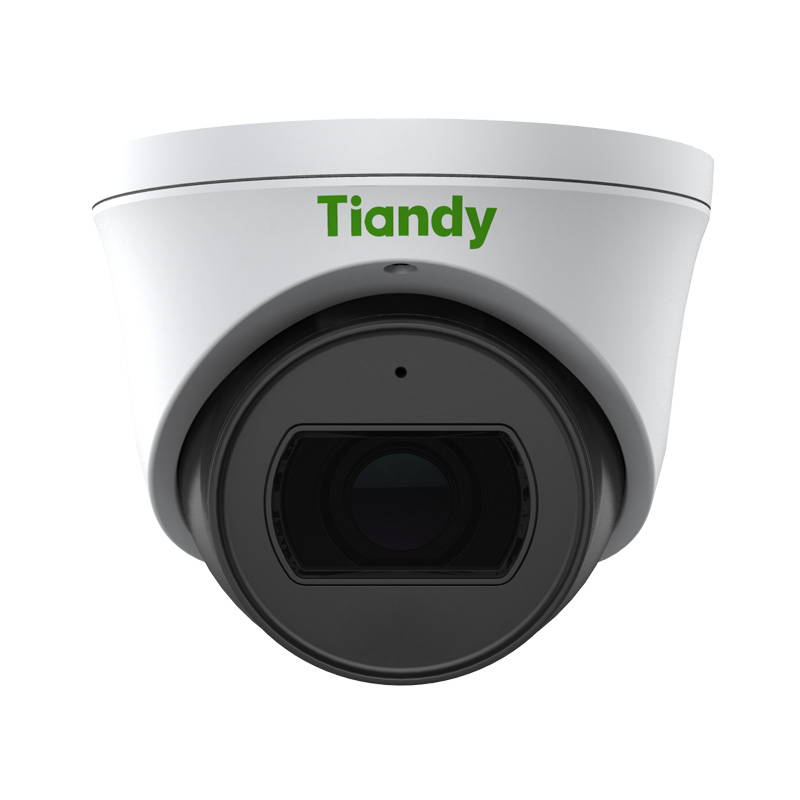

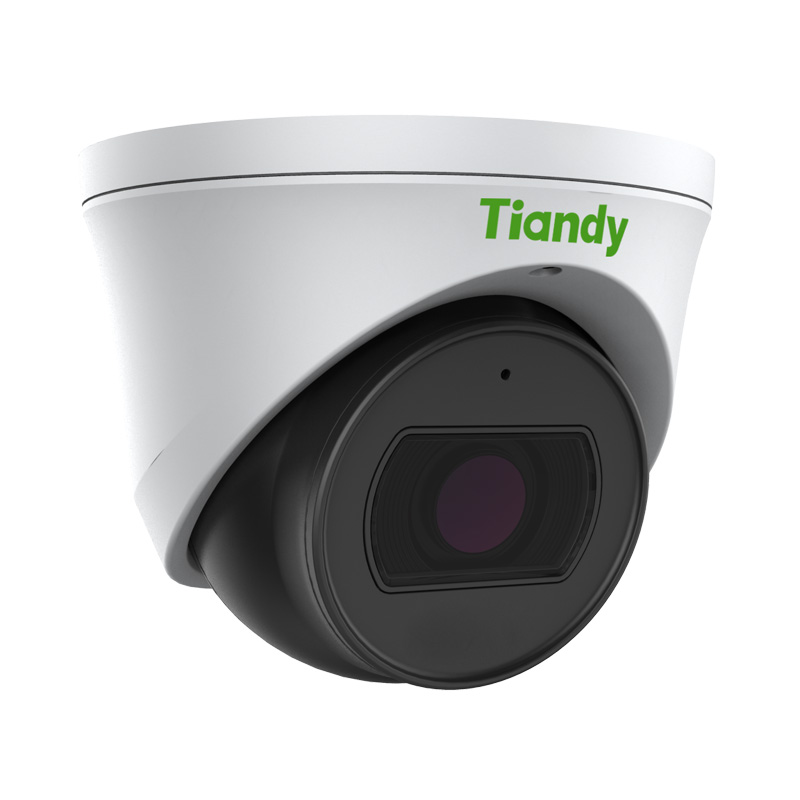

5MP Starlight Motorized IR IP Turret

Availability:

In stock

SKU: 1D.20010.002310

Add to wishlist

Compare

· Up to 2592X1944@30fps, 1920×1080@60fps
· S+265/H.265/H.264/M-JPEG
· Min. illumination Color: [email protected]
· Smart IR, IR Range: 50m
· Support Video Analytics
· Support Face Capture Mode
· Plugin Free
· Operating Conditions -35°C~65°C, 0~95% RH
· POE

Compare

This product: TC-C35SS Spec I5/A/E/Y/M/H/2.7-13.5mm/V4.0 - $350.00

811 Spec V2.0 - $30.00

A20 Login for prices

$380.00 for 3 item(s)

SKU: 1D.20010.002310 Categories: IP Camera, Pro Series, Turret

Basic Info

Description	Varifocal-5MP Starlight
Max Resolution	5.0MP (2592×1944)
Model	TC-C35SS Spec:I5/A/E/Y/M/H/2.7-13.5mm/V4.0
Series	Pro Series Starlight
Type	Turret

General

IK10	No
Impact Protection	IP67
Lightning Protection	Yes
Operating Condition	-35~65°C
Power Consumption(IR ON)	MAX:8W (12V) MAX:9.5W (PoE)
Power Supply	DC12V ±25% /PoE
Working Humidity	0-95% RH

Interface

Audio I/O	1/1
Built-in Mic	Yes
Built-in Speaker	No
Communication Interface	1 x RJ45100M self adaptive Ethernet port
Plugin Free	Yes
Reset Button	Yes
SDK	Yes

Network

ANR	Yes
DDNS	Yes
ONVIF	Profile S/T/G
Web Version	Web6
Wi-Fi	No

Smart Features

Corridor Mode	Yes
EW (Early Warning)	No
Face Capture	Yes
Heatmap	Yes
Human/Vehicle	Yes
Video Analytics	Demographics (People Counting), Double Tripwire, Face Capture, Heatmap, Loitering, Object Abandon, On Duty Detection, Parking, Perimeter, Safety Helmet Detection, Tripwire, Human/Vehicle Classification


BLC	Yes
Digital Noise Reduction	3D DNR
Frame Rate	2592×1944@25fps
HLC	Yes
Picture Overlay	Yes
Privacy Mask	Y(4regions)
Privacyes mask	Yes (4 regions)
ROI	Support 8 fixed regions of coding
Smart Defog	Yes

Compression Standard

Audio Bit Rate	8K~48Kbps
Audio Compression	G.711A/G.711U/ADPCM_D/AAC_LC
Video Bit Rate	32Kbps~16Mbps

illuminator

IR Range	50m(164ft)
IR LEDs	2
Smart IR	Yes
White Light Distance	No

Lens

Aperture Range	F1.6~F3.3
Autoiris	support DC drive
Horizontal FOV	94.2°~29.3°
Lens (mm)	2.7-13.5mm
Lens Mount	Φ14
Lens Type	Motorized
Vertical FOV	70.3°~22°

Camera

Angle Adjustment	pan: 0 to 340°, tilt 0 to 75°, rotate 0to 360°
Illumination	Color: 0.001 Lux @ (F1.6, AGCON) , B/W: 0 Lux with IR
IRCut Filter	Yes
Sensor Size	1/2.8" CMOS
WDR	120dB

Dimension (inch)	Φ5.2×3.94
Onboard Storage	Built-in Micro SD card slot , up to 512GB
Gross Weight (lb)	1.874
Incoming Date	0
Incoming	0
Version	V4.0
Material	Metal
Heater	No
CableInterface	PigTail
RS485	Yes
USB	No
1st Stream	PAL: 25fps(2592×1944,2592×1520,2560×1440,2304×1296),50fps(1920×1080,1280×720) NTSC: 30fps(2592×1944,2592×1520,2560×1440,2304×1296),60fps(1920×1080,1280×720)
2nd Stream	PAL:25fps(1920×1080,1280×720,640×360,704×576,704×288,352×288)NTSC:30fps(1920×1080,1280×720,640×360,704×480,704×240,352×240)
Starlight	Yes
OSD	16×16, 32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions
Language	16
Remote Connection	≤7
P2P	Yes
Milestone	Yes
CGI	Yes
POE	Yes
Dimension-Packed	176×166×121
Dimension (mm)	Φ132×100
Gross Weight	0.90Kg
Brands	Tiandy
Net Weight	0.65Kg
Per Box	24
Detail	5MP Starlight Motorized IR IP Turret

TC-C35SS Spec: I5/A/E/Y/M/H/2.7-13.5mm/V4.0
