Quick answer: Near-IR illumination helps a visible camera record reflected light; a thermal channel senses long-wave infrared from the scene and can work without visible lighting. Neither a printed IR range nor thermal resolution guarantees detection or identity. Use visible video for the required visual detail and verify thermal detection or surface-temperature tasks separately. Thermal fire/temperature analytics are supplementary and do not replace a required life-safety system.
On this page
IR illumination vs thermal imaging: what is the sensor actually seeing?
An IR-illuminated visible camera records reflected near-infrared light in a supported night mode. A thermal channel senses infrared radiation from the scene; surface emissivity, reflected surroundings, optics and atmosphere affect the result. It does not need a visible light source, but a bi-spectrum camera may also contain separate visible/IR hardware. Check the actual target contrast and image, not a promise of uniform weather performance.
| Question | IR-illuminated camera | Thermal camera |
|---|---|---|
| What it records | Near-infrared light reflected off the scene | Long-wave infrared emitted by the scene |
| Range limit | Illuminator throw, printed per SKU | Lens and sensor resolution; printed as detection distance per lens |
| Faces, plates, color | Required detail must be tested; IR-mode video is not full-color evidence | Do not rely on a thermal image alone for the required face/plate evidence |
| Fog, smoke, dust | Light scatters back; image washes out | Performance depends on atmosphere, target contrast, wavelength and distance; no universal see-through guarantee |
Bi-spectrum units provide separate visible and thermal channels. CS-I5LQ I-T-4mm lists optical 2880×1620@30fps and thermal 256×192@25fps; CS-P58 T-44X has its own optical/thermal rows. Confirm channel mapping, recording, events and the required visual task on the actual recorder/client. A visible channel does not automatically identify a person at a thermal detection distance. IR range explained covers illumination versus usable detail.
Detection range and NETD: how do you read a thermal spec sheet?
The named catalog rows list 256×192, 384×288, 640×512 and 1280×1024 thermal arrays on different products. Compare the exact lens, field of view, target contrast and task alongside those counts. Do not infer either guaranteed identity or a universal inability to resolve a target from sensor resolution alone; demonstrate the required recorded task.
A published thermal detection distance needs its actual target definition, criterion and test conditions. Do not assume every listed figure uses the same Johnson criterion. The CSP-I640R IT-13/19/25 page gives different human/vehicle distances by lens; CSP-I1280R IU-75mm gives separate long-range figures. They are reference rows, not guaranteed analytic alarm lines. Verify the exact lens, target, atmosphere, installation and accepted test before positioning a boundary.
NETD describes noise-equivalent temperature difference under specified test conditions. It is not temperature-measurement accuracy or a guarantee that every person will contrast with the background. The listed ≤45mK, ≤40mK and ≤35mK examples cannot alone rank complete systems; compare the actual lens/test conditions and required detection task. One millikelvin is 0.001°C, so 45mK is 0.045°C. FLIR’s lens and NEdT explanation shows why the comparison needs stated optical conditions.
Temperature measurement: which jobs is it for?
Only specify surface-temperature measurement where the exact model supports it. CS-I5LQ I-T-4mm lists −15 to150°C, 50 to550°C and Auto, with an accuracy row written Max. (±2°C, ±2%); obtain the actual interpretation, calibration conditions and supported method rather than choosing the more favorable number. CSP-I384 EXT I-7/13/25mm has its own ranges. Distance/spot size, emissivity, reflected temperature and ambient conditions affect the result. These rows do not establish medical screening, internal temperature or a certified process-safety function.
- Electrical rooms, switchgear and transformer yards: an approved view of accessible target surfaces for condition monitoring, without promising warning before every failure.
- Motors, bearings and compressors: engineered surface-temperature or trend checks where the visible target and approved measurement method support them.
- Waste, recycling, wood chip and coal piles: evaluate exposed surfaces and sightlines; hidden self-heating or warning before smoke is not guaranteed.
- Battery storage and charging areas: an engineer-approved external surface/region and response plan; do not infer internal cell temperature from the housing image.
- Hazardous-area process equipment: the explosion-proof CSP-I384 EXT I-7/13/25mm, printed with Gas Zone 1 & 2 and Dust Zone 21 & 22, is quoted per project.
Have the responsible engineer approve the target surface, emissivity/reflection assumptions, spot coverage, threshold and response. Verify calibration/accuracy conditions and test the actual recorded temperature/event path with the proposed device and client. Do not assume CASE Connect or NVR notifications from a temperature row; document supported versions, tested results and limitations. FLIR’s surface-measurement explanation describes input factors; it does not validate a CASE model or its settings.
Fire and smoke detection: what can a thermal camera do, and what is it not?
Thermal temperature or fire analytics may support an additional warning task, but they do not guarantee earlier warning than a required detector. CS-P58 T-44X lists a 2m×2m fire target at 3000m; the target is part of that reference, not a universal detection promise. CSP-I640R IT-13/19/25 lists Fire Detection/Smart Temperature Measurement. CS-I5LQ I-T-4mm does not list a fire-distance/function row, so do not infer one. Visible-light smoke/fire analytics on II turrets are a separate workflow.
Do not substitute a surveillance analytic for a required fire-alarm, medical or process-safety system without the actual approvals for that use. The responsible fire/life-safety designer and authority determine required devices and permitted interfaces. Specify any camera warning as supplementary, with a tested response path and limitations; do not claim that a named code edition or catalog badge certifies the installation.
- State in writing that the camera warning is supplementary. Have the responsible fire/life-safety designer identify the adopted local/project requirements and any approved interface; this article does not establish a required code edition or a camera substitution.
- Approve the threshold, region and response with the responsible engineer. Test only the notification/recording paths actually supported by the camera, recorder and client; do not assume all listed platforms receive thermographic data.
- Quote the printed fire detection distance only with its target size, and only for the SKU that prints it.

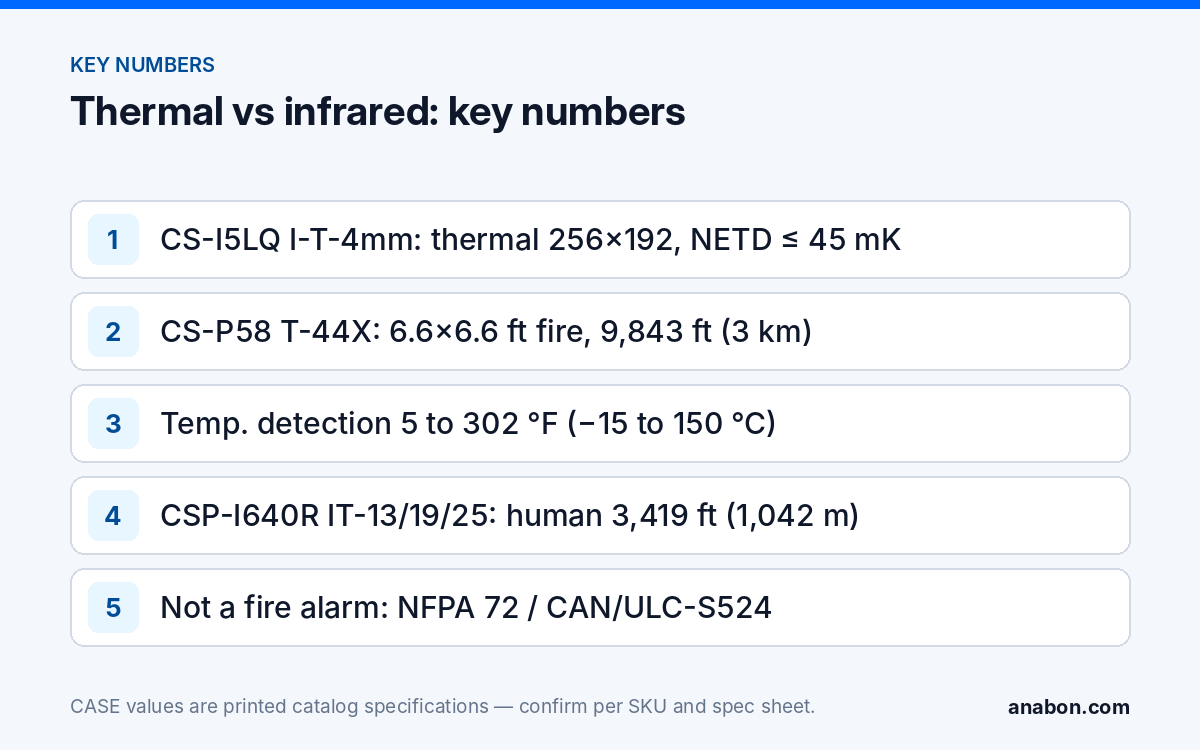

CASE thermal options as printed in Catalog 2027 Q1
| SKU | Type | Thermal resolution | NETD | Temperature / fire rows | Operating range · Protection | Sales model |
|---|---|---|---|---|---|---|
| CS-I5LQ I-T-4mm | Bi-spectrum bullet, optical 2880×1620@30fps | 256×192@25fps | ≤ 45 mK | 5 to 302 °F (−15 to 150 °C), 122 to 1,022 °F (50 to 550 °C); no fire distance printed | −31 to 149 °F (−35 to 65 °C) · IP67 | Confirm the exact model/order written warranty and supply terms |
| CS-P58 T-44X | Bi-spectrum PTZ, 6mm to 264mm, IR 984 ft (300 m) | 384×288 | ≤40mK | Temperature Alarm, Fire / Smoke Detection; 6.6 ft × 6.6 ft (2 m × 2 m) fire at 9,843 ft (3,000 m) | −40 to70°C IR off / −40 to40°C IR on; confirm actual operating conditions · IP66 | Confirm the exact model/order written warranty and supply terms |

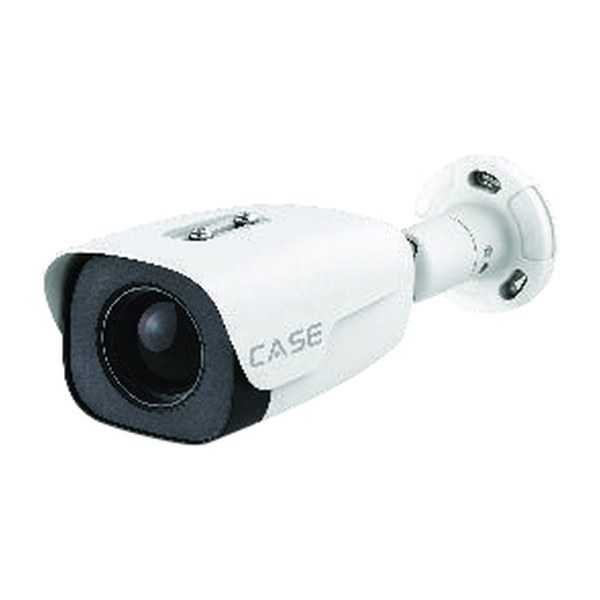

| CSP-I640R IT-13/19/25 | Fixed thermal, 9.1 / 13 / 19 / 25 mm athermal lenses | 640×512 | Not printed | Fire Detection, Smart Temperature Measurement; human to 3,419 ft (1,042 m) | −40 to 158 °F (−40 to +70 °C) · IP66 | Project-quoted |
| CSP-I1280R IU-75mm | Fixed thermal, 75mm lens | 1280×1024 | ≤35mK | Tripwire, Regional Intrusion; human 1.9 mi (3 km), vehicle 5.9 mi (9.5 km) | −40 to 140 °F (−40 to +60 °C) · IP66 | Project-quoted |
| CSP-I384 EXT I-7/13/25mm | Explosion-proof thermal, 7 / 13 / 25 mm | 384×288 | ≤40mK | −4 to 302 °F (−20 to +150 °C), 32 to 1,022 °F (0 to +550 °C) | −40 to 140 °F (−40 to +60 °C) · IP66 / IP68 / IP69 | Project-quoted |
Confirm current availability, written warranty, revision and delivery terms for the exact catalog-line model/order. CSP- Project Series certificates, configuration, availability, lead time and warranty require project-specific confirmation. A catalog certification claim is not the controlled certificate or site acceptance. CS-I5LQ I-T-4mm and explosion-proof cameras cover the corresponding evidence questions; procurement compliance remains a separate per-SKU check.
What to tell your customer
We will verify visible recordings for the required face or plate task and evaluate the thermal channel for the agreed detection or surface-temperature task. Distance, weather, target contrast and measurement conditions will be recorded as limits. Any camera fire/temperature alert supplements the required safety system, and the actual supported response path must be tested before handover.
FAQ
What is the difference between a thermal security camera and an infrared camera?
An IR-illuminated visible camera records reflected near-IR light, while a thermal channel senses long-wave radiation from the scene without visible illumination. Actual detail and range depend on the optics, target, exposure and atmosphere. Do not assume identity, plate reading or see-through-fog performance from either label. Bi-spectrum models provide separate channels to verify. FLIR’s material and weather overview explains relevant limits, including fog/rain and reflective surfaces.
How do thermal cameras work?
A thermal detector converts incoming infrared radiation into image data; different models use different detector designs. Surface emission and reflected surroundings affect the received signal, and the selected palette determines whether warmer areas look brighter or darker. Resolution, optics and target contrast affect detection; NETD is a noise/sensitivity measure rather than a complete range or accuracy specification.
Can a fire detection camera replace smoke detectors?
Do not replace required smoke/fire detection with a surveillance camera analytic. Establish the actual product approvals, applicable requirements and responsible authority’s decision for any safety interface. A supplementary thermal warning does not guarantee earlier detection or satisfy a code requirement by itself.
What does NETD mean on a thermal camera spec sheet?
NETD is a noise-equivalent temperature-difference figure under stated test conditions, not absolute measurement accuracy. Read the exact lens/temperature conditions and compare complete systems for the required task; a lower number alone does not prove detection performance. The named catalog examples list their own ≤45/40/35mK rows. Request the IP camera user manual and supporting test conditions for the exact model/revision.
