H.265 vs H.264 vs S+265: What Actually Changes for Storage and Bandwidth

Quick answer: Choose a codec that the complete recording, viewing and export path supports, then compare the actual recorded task and measured data. H.265 can improve compression efficiency over H.264, but neither half the bitrate nor identical detail is guaranteed for a particular camera/scene. Confirm S+265 behavior on the exact model/firmware and client; do not size retention from a headline saving or assume it preserves every event and export function.

On this page

How can H.265 reduce data, and what must remain usable?

H.264/AVC and H.265/HEVC encode video using tools that reduce spatial and temporal redundancy. Frame structures, prediction, GOP/keyframe intervals and encoder decisions vary by implementation and settings; do not assume every stream is one full frame each second followed only by changed-picture frames. The practical question is whether the encoded recording preserves the required moving detail and works across the intended system.

The H.265/HEVC recommendation defines coding tools; it does not prescribe one bitrate for every surveillance encoder. An 8-to-4 Mbps change is an illustrative test pair, not a mandatory H.264/H.265 conversion. Compare the same delivered resolution/frame rate, representative scene and evidence task, then record actual quality, average/peak data and receiver behavior.

• Storage: a genuinely lower recorded average rate can reduce payload for the same schedule; usable retention still depends on actual storage/configuration and recording demand.
• Data: budget all streams and traffic the recorder/network actually receives or sends. Codec names do not guarantee that sixteen cameras fit.
• Processing: verify the exact recorder/client codec, profile/level, resolution, frame-rate, concurrent decode and event requirements; do not infer decoding load or hardware support from the name alone.

Comparison table: H.264, H.265 and S+265

Check where each stream is encoded and how settings are controlled in this actual system. A recorder may expose camera settings, record pass-through streams or offer other processing, but no universal no-transcoding rule applies from a codec label. Confirm supported camera/recorder behavior, then test live view, recording, playback, events and receiving-party export before acceptance.

What does a codec change do to storage and bandwidth? (numbers)

Choose justified trial rates and validate them on the actual scene; megapixels, frame rate and codec do not prescribe one universal bitrate. At a constant video payload rate, 1 Mbps for 24 hours equals 10.8 decimal GB. The following examples are assumed rates for sixteen continuous cameras over thirty days, excluding audio, overhead and usable-capacity effects; they are not product modes or validated quality-equivalent comparisons.

CS-N220 P16H-AI lists 160 Mbps input, 120 Mbps with AI on. Compare that row with the actual defined input workload plus appropriate overhead/peaks and agreed margin, alongside decoding, AI, channel and storage requirements. A 96 Mbps main-stream example is not a complete pass, and H.264 is not prohibited in every configuration. Data volume does not determine a fixed number of bays; use the supported usable storage/drive design. The IP camera bandwidth calculator covers the separate budgets.

Decoding load: the NVR’s local display and the remote viewer

Encoding and decoding/processing responsibilities depend on the actual devices and architecture. Recording, analytics, preview, playback and export can share resources. Confirm exact supported modes, hardware acceleration and concurrency at the recorder and each required client; avoid saying camera encoding costs the recorder nothing or that all current phones support the workload.

1. Obtain the actual recorder decoding/display and concurrent recording/AI limits for the proposed mode and layout.
2. Test the real phone/tablet, app/version, layout, detail view and supported stream choices over the intended path; a low-resolution sub-stream does not guarantee every device or task will work.
3. Test required browsers, player/codec support, permitted access, playback/export and receiver environment. Record results and open limitations; do not promise plugin-free parity.

A recorder can support different recording and display workloads, but do not assume recording is unaffected by codec, events, analytics or concurrent playback/export. Verify the exact complete configuration and representative peak use. Confirm the term, exclusions and claim process for the exact model and revision in writing.

S+265: verify the actual mode before quoting a saving

The catalog lists S+265 among compression options, for example on CS-I8KS SD-2.8mm and CS-I4KS L-2.8mm. That listing alone does not specify the detailed algorithm, dynamic GOP behavior, interoperability or a guaranteed reduction. Obtain current exact-firmware documentation and compare required recorded detail, data and event/client/export behavior with the supported alternative modes. Browse IP cameras for installers for a shortlist, then confirm the exact revision and smart-mode behavior.

A headline such as ninety-percent storage saving is not a verified result for this project. Do not quote it as a promise or silently use it to reduce disks or bandwidth. Record the actual comparison baseline, scene, modes, quality criteria and measurement period for any claimed improvement; leave missing evidence unresolved.

• Size the agreed recording design from justified rates and usable storage, with documented peak demand and margin; plain H.265 is not automatically a conservative worst case.
• Enable a smart mode only where supported and approved; test motion, day/night transitions, events, seeks, playback and exports as well as quiet scenes.
• Validate permitted bitrate/GOP and other controls rather than assuming the old maximum remains the right setting or extra retention is guaranteed.
• Measure actual consumption and retained recording over a representative period. A shortfall needs investigation of rates, schedules, gaps, storage and settings, not an automatic conclusion that the scene was merely busier.

Confirm how the exact S+265 mode is presented to each receiver and whether all required functions work. Successful live decoding alone does not prove recording, event metadata, seek behavior or receiving-party evidence playback. RTSP stream URL covers connection questions; do not assume an RTSP path establishes full integration.

When should you stay on H.264?

Select H.264 where it best satisfies the approved complete workflow, and H.265 or a smart mode where the supported configuration and tested result justify it. There is no universal default that removes the need to check the actual clients, evidence requirements and data/storage design.

• Third-party integration: identify required codec/profile/level and functions. For a required ONVIF conformance claim, verify the full model and firmware in the official ONVIF database. Then test the required streams, recording, playback and events with the actual client/version. A profile list or brand name is not a complete integration statement.
• Browser/client: test the actual software/platform and supported access/stream modes; do not assume mixed main/sub-codec settings are always available.
• Evidence export: confirm the receiving environment, required format and supported export/conversion route. Preserve agreed originals and do not promise conversion or authenticity handling from the recording codec alone.
• Sub-stream: choose supported quality, rate and layout for the real task; a small bitrate saving or H.264 label does not guarantee universal compatibility.

Listings such as H.264B/H.264M/H.264H identify options to verify against the exact receiver’s supported profiles/levels and camera modes. Confirm the available settings and their recording, playback/event and export behavior in the actual combination; do not infer a valid preset from a suffix alone. Check the IP camera user manual for the exact model and request any missing firmware-specific details.

What to tell your customer

We will select a supported codec and settings that preserve your required footage and work with the actual viewing and export systems. Storage and data are based on stated assumptions and measured checks, not an automatic half-size rule. Any smart-codec saving will be reported against its real test baseline without reducing the agreed evidence task.

FAQ

Is H.265 better than H.264 for security cameras?

It can be useful, but the right choice depends on the exact encoder, supported receivers, recorded task, processing and usable storage/data requirements. Validate actual quality and average/peak demand. H.265 is not a universal half-bitrate, half-drive or fully compatible replacement for H.264.

How much storage does H.265 save compared with H.264?

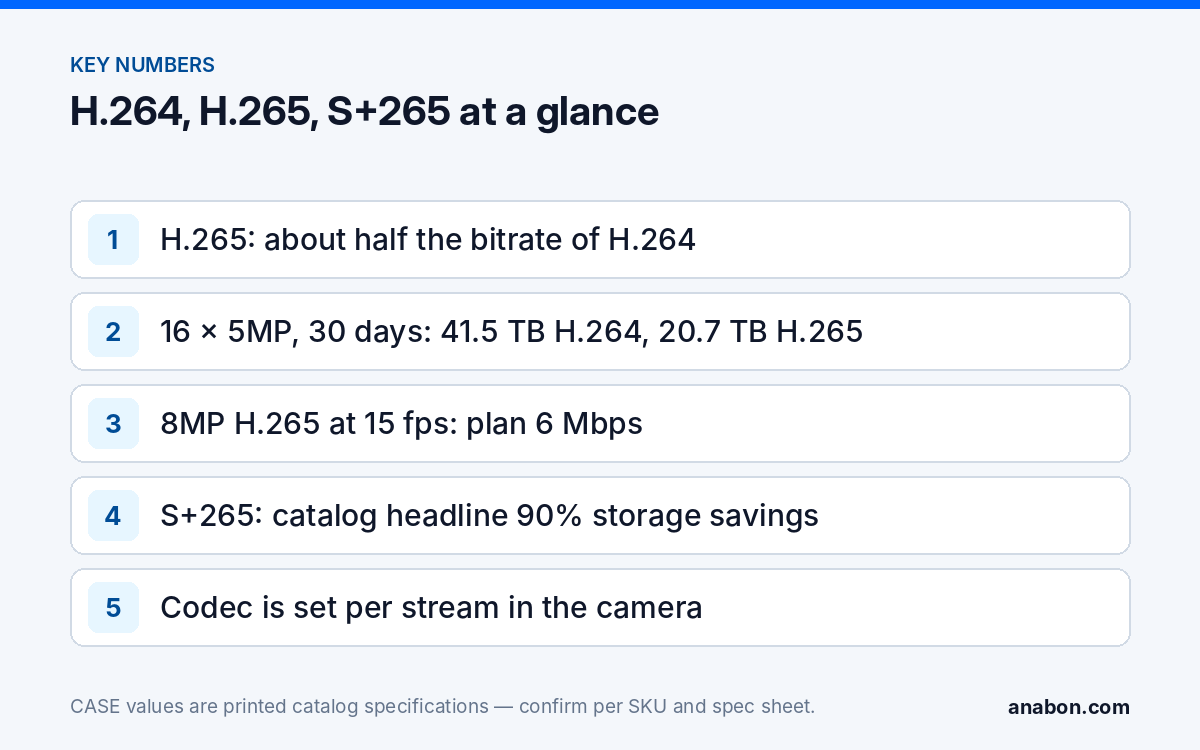

There is no fixed saving for every camera and scene. At an assumed 8 Mbps versus 4 Mbps, sixteen cameras over thirty continuous days generate 41.472 versus 20.736 decimal TB of video payload. That arithmetic does not demonstrate equivalent evidence quality, supported modes, actual usable retention or twice as many drives; measure the real comparison.

What is S+265 on CASE cameras?

It is a named compression option listed on relevant CASE camera pages. Confirm its exact firmware behavior, required integration and current documentation. Do not infer a universal algorithm or guaranteed ninety-percent saving from the label. Test required motion/detail, events, playback/export and actual rates before approving it. Use the NVR capacity planning guide to check receiver and recording workloads.

Does H.265 reduce video quality?

It can, depending on the encoder, settings and scene. H.264 and H.265 are not automatically lossless or quality-equivalent at apparently matching controls. Evaluate the actual recorded moving targets, exposure, compression artifacts and replay/export. Choose validated settings rather than a universal planning rate or claim that quality falls only from too little bitrate.

Can a third-party VMS record H.265 from a CASE camera?

Some combinations support it, but verify the exact camera/firmware and platform/version, codec/profile/level and required functions. For a required ONVIF conformance claim, verify the full model and firmware in the official ONVIF database. Then test the required streams, recording, playback and events with the actual client/version. A profile list or brand name is not a complete integration statement. Test any S+265 mode separately. If another codec is required, measure and resize that configuration rather than automatically doubling the H.265 rate.

References

• Anabon: exact model/revision documents
• ITU-T: H.265/HEVC recommendation, current edition
• ONVIF Profile T scope
• ONVIF authoritative conformant-product database
