Quick answer: Avoid directly publishing camera or recorder management and streaming ports to the internet as the default remote-access design. Agree a supported method with the customer’s IT team, then test authentication, permissions, revocation and the actual network path. P2P and VPN are labels to investigate, not automatic security guarantees.
On this page
Start with the customer’s access policy
A manager’s phone, a guard workstation and an installer’s service session may need different access. List the people, devices and functions first: live view, playback, export or administration. Record who approves each route and who removes it when a person leaves.
Choose only methods supported by the exact recorder, firmware and software. CASE Connect is the primary CASE software experience, but its name does not establish a P2P transport, encryption arrangement or every required role. The CASE Connect handover guide should be checked against the supported deployment.

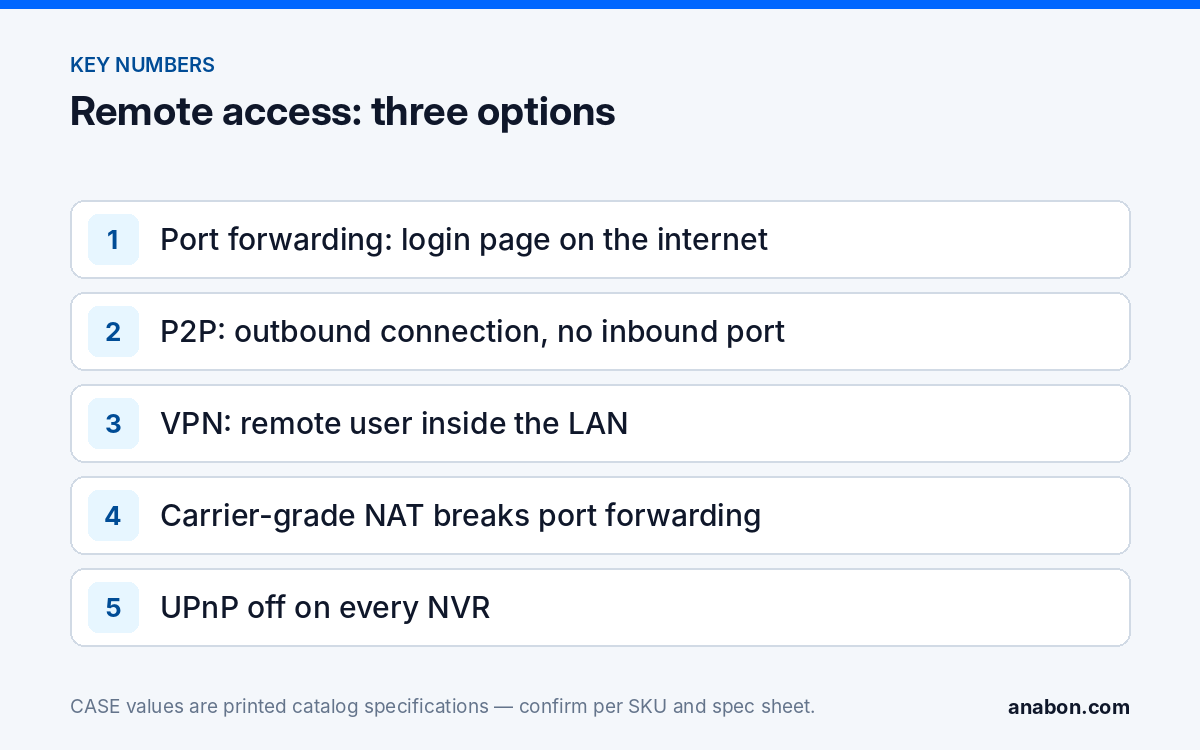

| Method | Main questions |
|---|---|
| Direct port forwarding | Which device interface is publicly reachable? Why is exposure necessary? What safer approved design is available? |
| Brokered/P2P-style service | Which service, authentication, data path, permissions and revocation controls are actually supported? What third-party dependency is introduced? |
| Customer-managed VPN | Who maintains the gateway and client access? Which destinations can each user reach? Are MFA, updates and logs managed? |
Why is direct forwarding a poor default?
A forwarding rule can make a recorder login or streaming interface reachable from outside the site. Changing its port number does not remove that exposure. UPnP can also create mappings where devices and the router support it, so review the actual router state rather than relying on a recorder menu checkbox. Ask IT to resolve an existing forwarded design through its security process. Restricting source addresses or adding HTTPS does not turn every directly exposed service into an acceptable design. Do not quietly publish an interface simply because an app setup is taking longer than expected.
What should you ask about a P2P-style service?
A brokered service may help devices and clients establish access through network boundaries without a conventional inbound forwarding rule. The implementation can involve direct connections, relays and service-specific authentication. Verify the actual method instead of promising that scanners can see nothing or that video never passes through a third party.
- Which models and firmware support the service, and which functions are available?
- Which destinations, ports and protocols does IT need to permit?
- How are users, device ownership, sharing and active sessions controlled?
- What protection, retention and data-flow statements are documented?
- How do you revoke access and verify that it has stopped?
CASE Cloud is separately described in the catalog for remote NVR configuration. That does not establish CASE Connect’s viewing transport or prove cloud video storage. Use the CASE Cloud scope guide when the requirement is technician configuration access.
What does a VPN change?
A customer-managed VPN can provide an approved route into a restricted network. It still needs an updated gateway, strong authentication, suitable user permissions and rules limiting the destinations users may reach. Joining a VPN should not automatically give a viewing user access to every business device. Let the network owner select and maintain the VPN implementation. Confirm that the actual client/software can perform the required recorder functions through that route; do not assume it behaves exactly like every local connection.
Commission the complete access path
- Record the approved method and required network rules.
- Configure named customer access and separate authorized service access where supported.
- Test live view, playback and export that are in scope, from outside the site using the intended account.
- Test restrictions and revocation with an authorized temporary account in a safe window.
- Review the router for unintended forwarding/UPnP mappings and record the result with IT.
- Document internet, power and service dependencies, plus recovery contacts.
Use the NVR hardening checklist and handover record. Never put device QR codes, passwords or live access tokens in public screenshots or routine shared reports.
Explain bandwidth and outage behavior accurately
Remote viewing depends on the relevant site and client connections, service availability and the configured streams. Measure performance with the expected users. A recorder’s maximum outgoing bitrate is not the site’s internet upload speed. Local recording may continue during a WAN outage when cameras, recorder, storage and required local services remain powered and connected. Test that scenario before promising it. A router failure or combined network/power failure can have a different result. Reconnection behavior also needs verification. Use the remote-viewing stream planning guide to calculate the intended client load.
FAQ
Is P2P the same as cloud recording?
No. Connection establishment, remote configuration and off-site video storage are different functions. Confirm each one independently.
Is a VPN always secure?
No. Its gateway, authentication, access rules, updates and operational ownership still matter.
Can different users use different methods?
Where supported and approved, yes. Document and test every path so removing one account does not leave another forgotten route.
Send the exact SKUs, versions, user tasks and IT restrictions to security camera technical support before quoting a remote-access capability. Review the recorder range only after the requirements are clear.
References
- Canadian Centre for Cyber Security — network zoning design
- NIST CSF 2.0 — access, governance and maintenance framework
