Quick answer: Choose the wiring topology and required data/power workload first. Specify verified copper-conductor cabling and compatible terminations for the actual route, link type, exposure and PoE conditions. Check the complete channel, installed tests and far-end peak power. Select shielding/bonding and surge protection from the equipment instructions and approved design; do not apply an industrial-only shield rule or universal one-end bonding detail.
On this page
Which of the three wiring topologies fits the site?
The three examples below are common layouts, not every possible system or a wiring approval. Choose the actual recorder/network interfaces, supported power source, security boundaries and complete workload, then document the required cable and protection design. A topology drawing does not establish device compatibility or a secure remote path.
Diagram 1: camera direct to a PoE NVR
- Use the camera’s approved connector/entry and a tested cable channel within the actual component and applicable length/temperature limits, including patching.
- Verify the NVR PoE interface, supported power class/load and actual port/channel/address mapping; do not assume automatic configuration.
- Connect the recorder’s required network interface through the approved customer network/firewall and supported access design, not an assumed direct internet path.
CS-N220 P16H-AI lists 16 PoE ports, 20 IP channels and a gigabit uplink. They are separate capacities, not a requirement to map ports to channels or proof that four additional LAN cameras automatically work. Verify formats, actual input/output, decoding, AI-on workload and power. Its printed incoming row is 160 Mbps, or 120 Mbps with AI on; the actual design needs headroom and all other limits too.
Diagram 2: cameras to a PoE switch, switch to the NVR
- Connect cameras to compatible PSE ports over approved tested channels; check actual camera demand and both per-port and total budget.
- Design uplinks, switching/routing and recorder interfaces for all required streams and access paths.
- Apply the approved network segmentation and permissions and verify the actual recording/client workflow; switch count follows the surveyed topology and capacities.
CS-POE33024PF lists 24 gigabit PoE ports, 802.3af/at, a 30W per-port maximum, 400W/600W budget variants and two 1000M SFP uplinks. Identify the supplied variant and its actual approved limits; twenty-four ports do not mean twenty-four devices at maximum power. Include cable losses, peak modes, total load, uplinks and the recorder’s separate workload. The PoE budget calculator is a planning aid with explicit assumptions.
Diagram 3: fiber between buildings or out to a pole
- Specify the actual compatible fiber, optical modules and endpoint equipment for the route, capacity, loss budget and environment.
- Provide approved local camera/network power and cabinet/environmental protection independently of the optical data leg.
- Verify the complete uplink and recorder/client workload, and include remaining metallic and power paths in the site protection design.
All-dielectric fiber removes a metallic conductor from that optical data leg, not from the entire installation. Armor, tracer wires, other cables or shared power may remain. CS-POE33108PF lists eight gigabit PoE ports, 130W/250W budget variants and two 1000M SFP ports; those rows do not approve every module or a particular outdoor cabinet. CS-H1108PLS lists 100m standard/250m Extend Mode and a 100W budget. Confirm extended-mode speed, cable, delivered power, temperature and full load rather than treating the distance row as a guarantee.

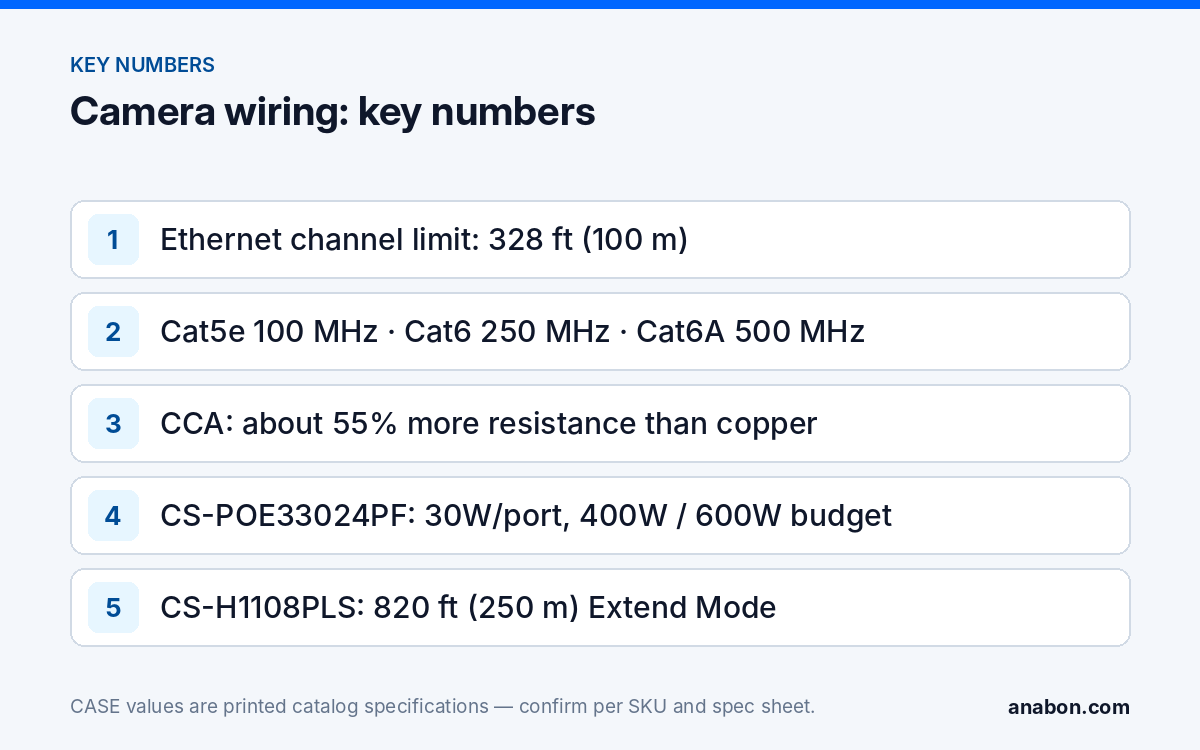

Cat5e, Cat6 or Cat6A: which one for cameras?
Category, link mode, component compatibility and the installed channel determine supported data performance. A camera does not have one universal maximum bitrate, and port speed alone does not prove that the complete network video recorder workload fits. Use the actual required streams and representative rates, with power and environment checks alongside the data design.
| Category candidate | Common data planning reference | Confirm for this project |
|---|---|---|
| Cat5e | 1000BASE-T within a compliant applicable channel | Existing cable identity, condition, complete test results, exposure and PoE requirements |
| Cat6 | 1000BASE-T channel; shorter supported 10GBASE-T reach depends on the channel | Actual conductor/gauge, components, installation, temperature and required application test |
| Cat6A | 10GBASE-T planning up to the applicable 100m channel | Actual component system, route, bend/bundle limits, PoE and future needs |
Specify the actual cable part and termination system, not an assumed 23/24 AWG difference between categories. Resistance, conductor size/construction, pair balance, connectors, bundle size and ambient temperature affect PoE performance. Use the current project/applicable test limits and component instructions. The familiar 100m channel reference often includes a 90m permanent link and patching, but topology, cords, temperature and components can alter the applicable allowances. Include every relevant segment and test the intended link type; field margin does not excuse poor termination.
Why is copper-clad aluminum (CCA) off the truck?
CCA has an aluminum core under copper cladding. Non-standard CCA communications cable can have higher resistance and unsuitable PoE behavior; a category label or a working daytime link does not establish compliant cabling. Specify traceable approved copper-conductor data cable for this installation and the required tests. Do not infer one exact resistance increase, mandatory nighttime failure or the conductor material from box weight alone. The CCA identification guidance explains the limits of simple visual and material checks.
- Verify manufacturer, exact part, conductor construction, applicable listing/certification and location/environment ratings against reliable product records.
- Match solid/stranded conductor size and construction to the approved connectors and link design; a generic solid-only rule does not describe every patch cord.
- Use appropriate inspection and electrical/category tests, including relevant resistance/balance checks for the PoE design. Scraping or weighing alone is not acceptance evidence.
- Quarantine uncertain or substituted cable for verification. Missing material wording is a reason to investigate, not proof that a cable is CCA.
When do you shield, and where does the shield land?
Select UTP or the required shielded construction from the actual equipment instructions, interference environment, route and approved bonding design. Shielding can be required outside industrial settings, and an industrial location alone does not specify a complete shield system. Diagnose link errors with evidence; a camera disconnecting near a motor does not by itself prove EMI.
Maintain the shield/termination path specified for the actual equipment and cabling system and coordinate bonding with the responsible electrical/network reviewer. There is no universal telecom-room-end-only rule, nor does bonding at both ends automatically prove a ground loop. Do not use a cable shield as a protective conductor or improvise electrodes. Follow the applicable separation/pathway rules and verify the complete installed arrangement.
- Document the exact shielding, connectors, patching and bonding arrangement required by the approved equipment/system design.
- Resolve interference and pathway separation before installation; shielding does not authorize sharing a route with power.
- Keep distance, thermal/PoE and surge requirements separate. A shield does not automatically solve any of them.
Where does surge protection go on an outdoor run?
Have the responsible reviewer assess exterior copper, building entries, structures and supply paths as one protection design. Camera-adjacent and entry SPDs may be relevant, but there is no universal one-metre lead or electrode arrangement for every run. Select actual data rate, PoE standard/class/load, environment and coordination, then follow the approved device and site instructions. A PoE++ label alone is not complete compatibility evidence. Use the outdoor and PTZ surge-planning guide to gather the required device and route inputs.
CS-POE33024PF and CS-H1108PLS list 4KV lightning protection and IP30; CS-PSE3301AC names ESD/lightning protection. The catalog does not establish every test condition, protected interface or completed site result from those words alone. Obtain exact documents and include any required external measures in the approved design. The outdoor/PTZ surge guide explains the planning inputs; built-in figures are not immunity or warranty guarantees.
How do you label, test and document each run?
Use the approved stable identifiers and record their actual cable, physical-port and logical-channel mapping. Apply compatible labels without blocking seals or strain relief. Test accessible work before closure and the final installed channel after completion as required; retain the exact test limit, equipment, date and result with the as-built record.
| Check | Acceptance basis | Record |
|---|---|---|
| Wiring and length | Correct wiring and applicable channel/link/component limits, not one ninety-metre rule for all topologies | Identified route/link type, tested length and result |
| Category/application performance | Specified test standard/edition and correct test configuration | Per-link report, tester identity/calibration and selected limit |
| Negotiated data rate and workload | Expected supported rate for the actual endpoints and complete traffic test; not every camera port is gigabit | Port state, representative traffic and faults |
| PoE and power | Compatible PSE/PD, relevant resistance/balance and far-end peak operating/starting modes within approved limits | Actual class/load, supplied variant, test conditions and stable operation |
Hand the test report to the customer with the as-built drawing; the full convention is in Labeling and documentation standard for camera installs.
How do you confirm the applicable wiring rules?
Identify the jurisdiction, adopted code edition, project specification and responsible reviewer before work. Limited-energy/power and communications provisions have changed between editions. Do not use one older NEC/CEC article list or an assumed circuit class as a universal current installation instruction. Record the adopted edition and responsible approvals with the site survey checklist.
| Topic to resolve | Required project record |
|---|---|
| Circuit/system classification and supplied power | Actual equipment/circuit details, adopted code edition and responsible approval |
| Cable location and pathway | Air-handling/riser/wet/exterior classification, approved cable/listing, separation and support |
| Bundling and temperature | Actual cable, current/load, bundle/environment and applicable limits/derating |
| Building entry, bonding and protection | Coordinated approved detail and required inspection references |
| Rated penetrations | Applicable approved firestop system for the actual assembly and opening |
Confirm the route classification with the responsible building/mechanical/code reviewer and retain product identification and inspection records. A suspended ceiling is not automatically a plenum, and CMP/FT6 or other location marks should not be treated as universally interchangeable. Use the applicable approved cable, pathway and penetration details for the actual project.
What to tell your customer
We will document the approved topology and cable/component system, test the installed links and actual power/workload, and label the final mappings. The project record will identify the applicable route and protection details and any pending item. Cable category, a link LED or a surge-protection label alone does not promise continuous operation or every camera function.
FAQ
Is Cat5e good enough for 4K security cameras?
It can support a suitable application where the complete identified channel, required data rate, PoE, environment and installation tests meet the design. The 4K label alone does not decide it. Existing verified Cat5e does not automatically need replacement; new category selection should follow actual requirements, component compatibility and future needs rather than assumed wire gauge.
Can I run a PoE camera past 328 ft (100 m)?
Beyond the applicable standard channel limits, use an expressly supported extended system or another approved architecture, often fiber with suitable local power. CS-H1108PLS prints 250m Extend Mode, but speed, cable, losses, delivered peak power and conditions require confirmation and testing. An extender or distance label alone is not a complete design. The PoE distance and extender guide compares the planning questions for those alternatives.
Do I need shielded cable for outdoor cameras?
Follow the actual camera/PSE and cabling-system instructions and the approved interference/bonding design. Shielding is not limited to industrial routes, and there is no universal one-end rule. Verify exposure/location ratings and surge requirements separately; an outdoor jacket or shield does not establish the whole installation’s protection.
How do I know a box of cable is copper-clad aluminum?
Verify the manufacturer, exact part, conductor information and applicable approval records and use appropriate inspection/electrical tests. A category label, carton weight or scraped sample alone is not acceptance proof, and missing wording does not establish CCA. Hold uncertain cable for verification rather than installing it or falsely certifying its material. Resistance-unbalance testing addresses PoE performance; it does not by itself certify conductor composition.
Does a PoE switch’s built-in lightning protection replace a surge protector?
A printed protection figure does not establish the site’s complete surge scheme or automatically decide every external SPD location. Obtain exact product/test/installation evidence and have the responsible reviewer specify coordinated measures for the actual power and data routes. Follow the approved connection details rather than a generic lead-length rule.
