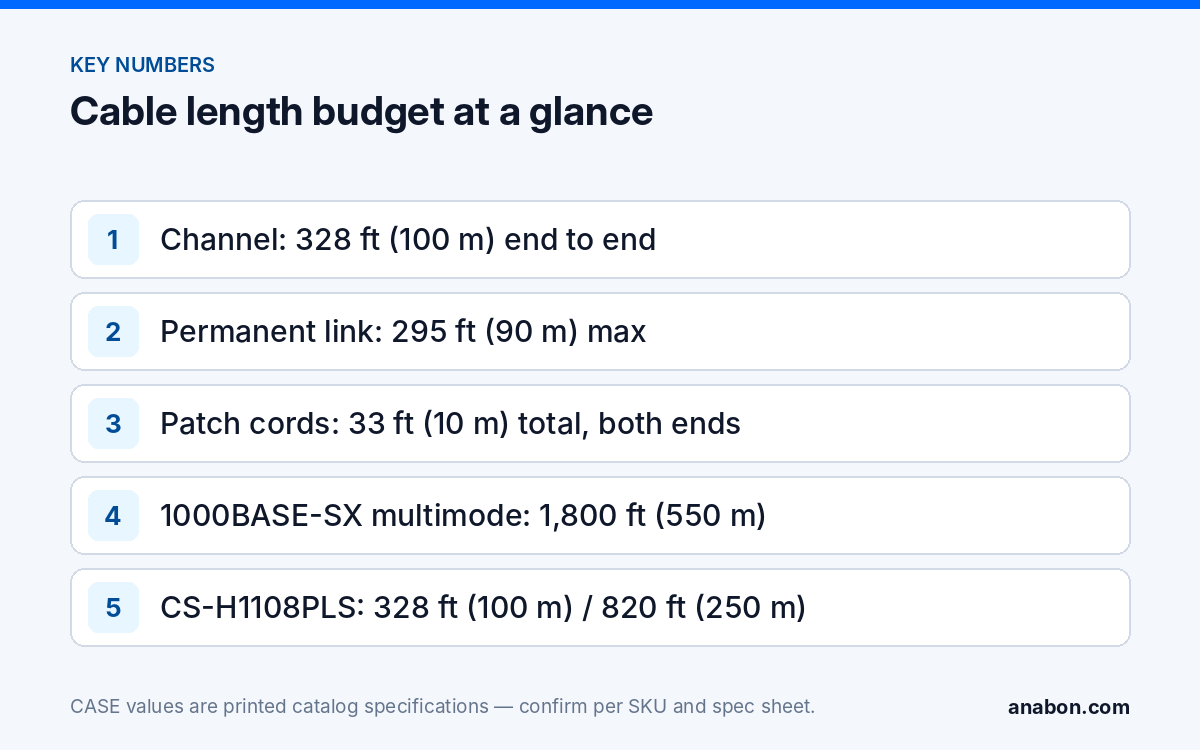

Quick answer: For a conventional structured copper Ethernet design, start with a 90 m (295 ft) permanent-link allowance within a 100 m (328 ft) channel. The actual cable/cord construction, temperature, topology and test specification can reduce the usable allowance. Measure the whole route and slack, verify data and peak PoE, and choose the correct permanent-link, channel or MPTL test. A passing live image is not cable certification.
On this page
Where does the 328 ft (100 m) max cable length for an IP camera come from?
Use the project’s specified current cabling standard, link topology and component instructions. The familiar 90 m permanent-link/100 m channel model is a starting configuration, not permission to add any ten metres of cords to any cable. Cord construction, temperature and other design conditions can change the allowance. Choose a certifier limit and adapters for the actual link, including a modular-plug-terminated link where used; link-up alone does not prove the required performance. The channel, permanent-link and MPTL test models explain why the test configuration matters.
Check the actual cable conductor material, gauge, resistance/balance, connections, temperature and bundle design against the required data and PoE class. Category names do not prescribe one universal conductor gauge or make Cat6 automatically lower resistance than every Cat5e product. Copper-clad aluminum needs compliance review and must not be assumed equivalent to compliant copper horizontal cabling. The PoE max distance guide covers longer-link alternatives; verify delivered power at representative peak modes.
How do patch panels, cords and service loops use up the budget?
The permanent link is the fixed installed cabling between its defined test points. Equipment and device cords belong in the channel assessment. Allocate the route, terminations and cords before the first pull:
| Part of the path | Count/check | Planning action |
|---|---|---|
| Permanent horizontal route | Actual routed cable, rises/drops and retained slack | Measure and compare with the selected link design allowance |
| Equipment and camera cords | Combined length, gauge/construction and connector arrangement | Include in the channel model; ten metres is not an automatic allowance for every cord type |
| Direct device termination | Field plug and supported MPTL configuration | A missing outlet/patch cord does not mean zero device-end cable or no termination test |
| Temperature and PoE | Cable rating, bundles, resistance/balance and peak load | Apply required derating and correct certification/PoE checks |
Illustrative route arithmetic: 240 ft on the plan + 12 ft rise + 25 ft detour + 10 ft slack + 14 ft drop = 301 ft, about 91.7 m. That already exceeds a conventional 90 m permanent-link allowance before equipment cords. Revise the route, cabinet or design rather than hiding excess cable in a loop. Survey every uncertain or close-to-limit route; 230 ft is not a universal threshold for whether measurement is needed.
Where does the PoE switch go in a large building?
Map actual pathways from candidate cabinets, including detours, vertical changes, connections and access. A straight-line radius or floor-area cutoff cannot prove reach. An IDF may shorten local copper runs, but it also needs an approved environment, secure access, power/continuity and a sized uplink. Confirm route permissions and maintainable cabinet placement before quotation. Select each PoE switch only after that cabinet and route review.
Integrated PoE and external switches are alternative topologies to assess against the actual recorder/network configuration. CS-N220 P16H-AI lists sixteen PoE ports plus a gigabit Ethernet interface. A remote switch can place power/ports closer to cameras, but it does not add recording channels or remove data, AI, decoding or storage limits. Choosing the right CASE NVR covers those independent checks.
- CS-POE33024PF: twenty-four gigabit PoE ports, two gigabit SFP interfaces and printed 400 W/600 W budget variants. Resolve the supplied variant and actual usable power with its current sheet.
- CS-POE33108PF: eight gigabit PoE ports, two gigabit SFP interfaces and printed 130 W/250 W variants. Check the full local and uplink workload, supported optics and delivered power.
- CS-H1108PLS: eight 100 Mbps PoE ports plus two 100 Mbps uplinks; catalog reach rows are 100 m Standard and 250 m Extend Mode, with a 100 W total budget. These rows do not establish extend-mode speed, delivered power at 250 m or suitability for a particular camera. Obtain exact-revision limits and test the actual cable and peak load before selecting it.
These switch pages list IP30, -20°C to +55°C and non-condensing humidity limits. That does not approve exposure in an outdoor or condensing enclosure. Review thermal, moisture, surge, mounting, service and electrical requirements for the complete cabinet. Size input supply/UPS from the actual equipment variant and supported input/load data, not only the advertised PoE output budget. Confirm the term, exclusions and claim process for the exact model and revision in writing. A cable-temperature review also belongs in the link allowance.
When is fiber the right link between buildings?
Fiber is a candidate for longer or electrically separated links. Specify the actual supported modules, host interfaces, fiber type, connectors, optical loss budget and environment. No single multimode/single-mode reach applies to every module. An all-dielectric optical leg does not conduct electrical surge energy along that leg, but metallic armor, power and other services still need qualified protection review; fiber does not guarantee equipment immunity.
A typical layout is head-end switch, supported optics, tested fiber, supported optics and remote switch, followed by local copper links within their approved design. CS-POE33024PF and CS-POE33108PF list two gigabit SFP interfaces; module compatibility is not established by that port label. Confirm both ends, fiber/connector requirements, remote supply and complete workload. Designing a two-building site compares central and local recording and the consequences of losing that path.
Sample cable plan: two-story office with a warehouse wing
Illustrative layout only: a two-story office with a long warehouse wing, a main rack and a candidate remote cabinet. The labels and approximate route lengths below show how to document decisions. They are not measured site results or pre-approved cable grades. Use actual environmental, local-code and contract requirements and the appropriate test for each topology.
| Run group | Illustrative route | Decision/status |
|---|---|---|
| C01-C08 from main rack | 18-55 m estimated horizontal routes | Check full routes, slack, cords, topology and required cable rating; certification pending |
| C09-C14 from main rack | 58-85 m estimated including floor changes | Verify actual conditions/derating and terminations before design acceptance |
| C15-C22 from remote cabinet | 12-70 m estimated local routes | Remote supply, PoE, environment, security and uplink design pending |
| U01 main-to-remote cabinet | 125 m illustrative fiber route | Specify supported optics, fiber/connector loss budget and actual tests |
| C23 remote yard position | 195 m illustrative copper route | Outside a conventional 100 m channel; compare nearer powered switching, fiber or a documented proprietary extension. No prefilled night-test pass |
Do not label a proposed extended run as tested or compliant before results exist. Manufacturer-specific extension may work under defined conditions, but is not a conventional 100 m structured Ethernet certification claim. Record the exact cable/device settings, limits, test method and actual results. All nine remote streams C15-C23 also contribute to the relevant uplink/recorder workload. The wiring guide covers the wider material and protection checks.
Cable plan checklist before you order cable and switches
- Measure every actual route and retained slack; list equipment cords, device-end connections and the selected link topology.
- Apply the specified link/component limits, temperature and PoE conditions; resolve close-to-limit or unknown routes before release.
- Map cabinets to real pathways, not a straight-line radius or floor-area rule.
- Confirm approved cabinet environment, secure service access, supply/continuity and full uplink workload.
- Have qualified reviewers assess interbuilding metallic paths and protection; specify exact supported optics/fiber where selected.
- Document proprietary-extension limits separately; test actual data and peak load without presenting them as conventional channel certification.
- Use the correct permanent-link, channel or MPTL limit/adapters and retain actual results, labels and unresolved items.
What to tell your customer
We will measure the complete pathways and choose the correct cable/link design and test. Where conventional copper cannot meet the requirements, we will compare a nearer powered cabinet, fiber or an explicitly supported extension. The proposal will state assumptions, protection responsibilities and acceptance checks; a camera coming online is not the final cable test.
FAQ
What is the max cable length for an IP camera on Cat6?
A conventional structured Ethernet channel is commonly designed up to 100 m, with a 90 m permanent-link model. Actual cable, cords, topology, temperature and specified tests matter and can reduce the allowance. Cat6 alone is not permission to exceed that design or a guarantee of lower resistance; verify the actual product and PoE workload.
Do patch cords really count against the 328 ft (100 m)?
Yes. Include the actual equipment and device cords in the selected channel model. A 98 m permanent run does not become a conventional 90 m permanent link simply because short cords keep the apparent total near 100 m. Check the specified topology, components, derating and correct test limit rather than relying on successful link-up.
Where should the PoE switch go in a long building?
Place it where the measured routes and complete data/power/environment design meet the requirement. A remote IDF with a suitable CS-POE33108PF is one candidate, subject to its supplied variant, power, uplink, protection and continuity needs. A geometric radius alone is insufficient, and a remote switch cannot add recording resources to the NVR. The PoE budget calculator helps document source reservations and the chosen power margin.
Can I run Cat6 between two buildings for cameras?
Distance is only one part of that decision. Have the actual metallic route, local electrical/protection requirements and dependencies reviewed by qualified people. All-dielectric fiber can avoid conduction through that optical leg, but not risks from other services or equipment. Choose supported optics/fiber from their actual reach and loss specifications; do not promise one universal 550 m or 5 km link.
