Junction Box for Security Camera Installs: Matching CASE Boxes and Mounts

Quick answer: Select the complete camera, connector, box and mount stack from the exact model/revision instructions. A compatible box can protect and organize connections, but a box alone does not prove a weather rating, dry connector or future upgrade compatibility. The catalog lists accessory names; confirm fit, load, orientation, entry/seals and the approved substrate detail before ordering. Use the supplied items’ written warranty terms.

On this page

When does the connection need a compatible junction box?

Start with the camera’s approved connector and mounting arrangement and the actual exposure. An unprotected joint or unsuitable wall cavity can be a failure point, but not every outdoor camera uses the same separate box. Select the specified seal/enclosure detail and service access rather than assuming the base or a generic box protects the connection.

• Connection protection: match the actual connector, cable, seals, entry and enclosure instructions; a drip loop alone does not guarantee dryness.
• Strain and service: provide permitted slack, restraint and access without pinching cable or loading the connector.
• Replacement: record the exact pattern and stack. A later camera may require different parts or fixing; the existing box does not guarantee an upgrade without new holes.
• Substrate: confirm the approved support and building-entry detail. A flat box face does not establish structural capacity or a wall seal.

Indoors, check the same model instructions, cable protection, access and local/project requirements. A hidden cable or suspended tile does not automatically make a box optional, and a box does not approve the ceiling support. Wet, wash-down and hygienic locations need their own equipment and installation assessment. Check the IP camera user manual and request exact accessory instructions for each revision.

Which CASE junction boxes and mounts are in the catalog?

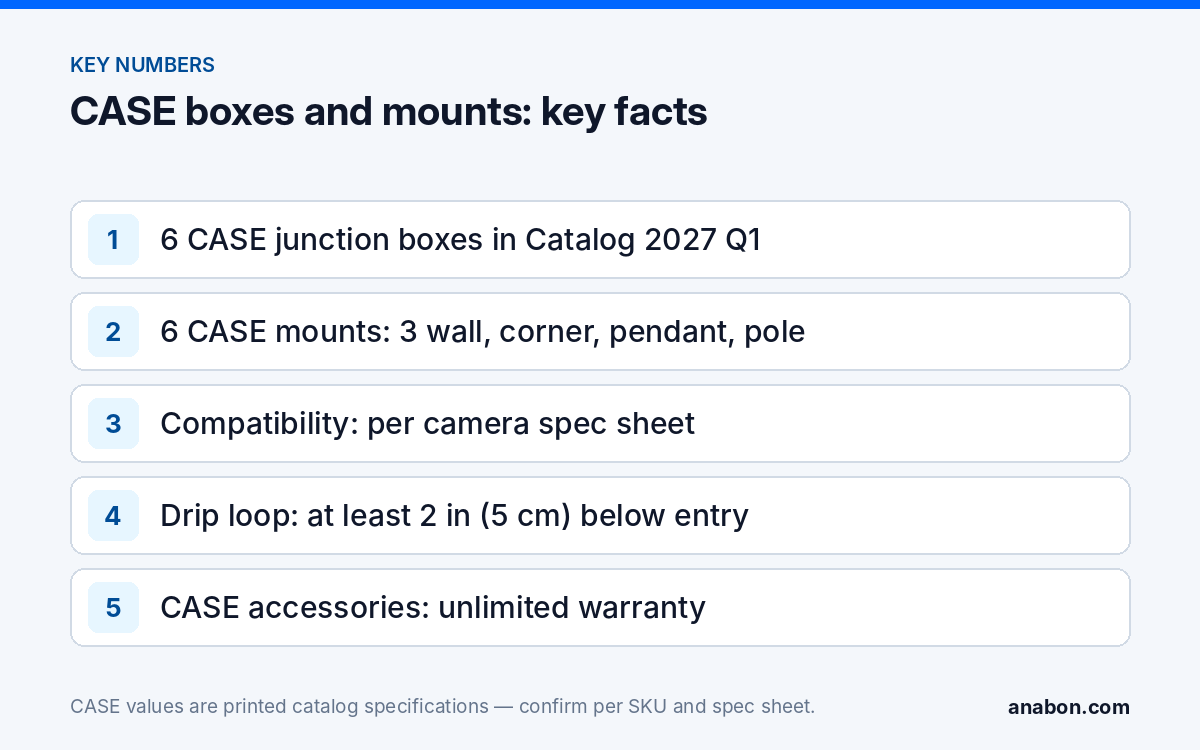

The current catalog names the twelve accessories below and asks the reader to check camera specification sheets for compatibility. Those pages do not establish a complete stack, load, dimensions or an ingress/NEMA rating for a particular installation. Obtain the actual revision’s sheets and installation instructions for the camera and every accessory.

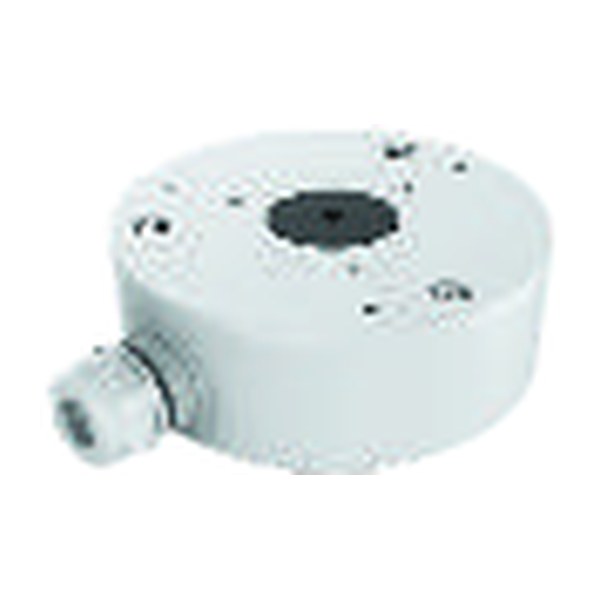

Three of the six boxes are CS-P54BM V1, CS-P54BM V3 and CS-P54BM V5/V3.0 and a fourth, CS-P54AM V4, differs in both letter and suffix. Order the exact SKU and suffix the sheet names; do not assume two versions share a hole pattern.

How do you confirm the right box or bracket for a camera?

1. Identify the complete camera SKU/revision and required mounting orientation.
2. Obtain the current camera and accessory sheets/instructions; record the exact accessory suffix.
3. Confirm the entire stack, including any intermediate box, adapter or wall mount, not only one matching component.
4. Verify dimensions, load, substrate/fasteners, environmental/rating requirements, cable entry and service access.
5. Ask Anabon for written clarification where the documents do not show the proposed combination. A website photograph or the absence of a catalog compatibility table is not an installation approval.

Resolve a suffix or fit discrepancy before dispatch. Do not solve it with an unapproved adapter plate, extra holes or sealant. Record the approved combination on the schedule and make a controlled fit check where appropriate, without altering rated parts. Use the bench preparation guide to record a controlled pre-site fit check.

Wall, corner, pole or pendant: which bracket does the position need?

Wall

A compatible wall arrangement may mount the camera directly, on a box or through a specified bracket. CS-A25, CS-A28 and CS-A29 are wall-mount names, not universal stand-off or dome-angle solutions. Confirm the actual supported combination, view, leverage and structure before selecting one.

Corner

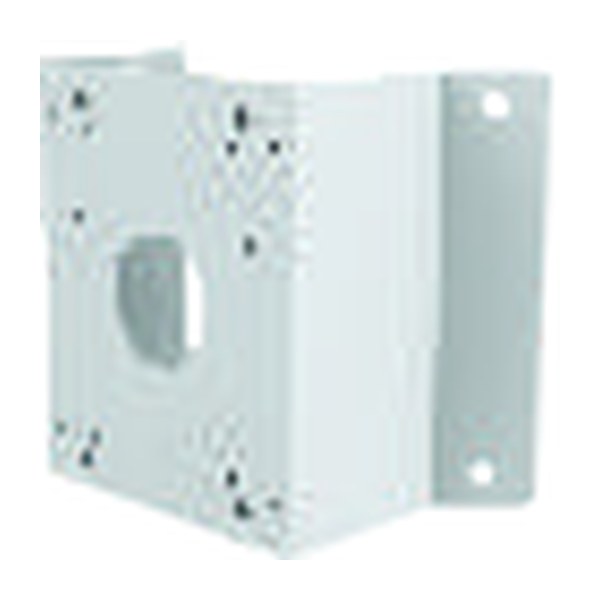

CS-A35 is a corner-mount candidate. Confirm its supported stack, actual corner/substrate and approved attachment detail; do not prescribe anchors in both walls without the relevant instructions. Draw and test the camera’s FOV and occlusions, since a corner position does not automatically see along two facades.

Pole

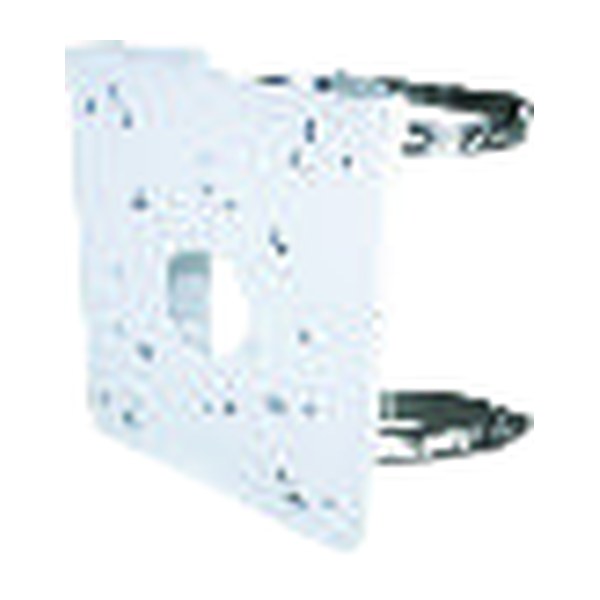

CS-A36 is a pole-mount candidate. Measure the actual pole and confirm its condition, load, owner’s permission and approved fastening/stack details. A round pole or a strap photograph does not establish compatibility. Include the exterior cable/power route in the responsible surge/bonding review; use the outdoor/PTZ protection guide for the planning inputs.

Pendant

CS-DF21Y may support a compatible pendant arrangement where the required view and access call for it. Confirm the complete stack, allowed orientation, drop/load/movement limits, cable route and structural attachment. A catalog name does not establish a particular hanging load or approve every housing.

How do you seal the box and bring the cable in?

Follow the exact camera/enclosure assembly instructions and required building-entry detail. The catalog page’s lack of a rating does not mean a generic sealing method creates one. If the project requires IP, NEMA or another approval, obtain evidence for the actual assembled configuration and verify its conditions before promising it.

• Use permitted entry orientation, cable range, restraint and bend limits from the actual component instructions.
• Select compatible glands, plugs, seals and adapters; follow the specified assembly and torque rather than closing an oversized hole with an improvised filler.
• Preserve designed vents/drains. Do not leave a bottom gap, remove a plug or drill a weep hole unless the approved detail calls for it.
• Use sealant only where its chemistry, substrate, placement and curing method are approved.
• Have the responsible reviewer resolve substrate, corrosion, bonding and any rated building penetration requirements for the actual installation.

Glands and sealant types for each cladding are in Outdoor cable entry and weatherproofing.

What goes on the order with each camera?

Order the approved accessory and entry/support components with the camera schedule. Record any unresolved fit, rating or site-approval question before dispatch rather than assuming a later adaptation will be possible.

• Exact connector/box arrangement required by each camera and exposure, with version suffix and supporting document.
• Complete compatible wall, corner, pole or pendant stack, including any specified intermediate adapter.
• Approved substrate/load fasteners and necessary owner/structural permissions.
• Correct cable-entry/seal components and any permitted spares, plus the installation and inspection requirements.

The schedule format that ties accessory lines to camera lines is in Writing a camera schedule and bill of materials.

What warranty applies to CASE mounts and junction boxes?

Confirm the term, exclusions and claim process for the exact model and revision in writing. Record the accessory identity and applicable dated terms, including installation-related exclusions and the approved support/RMA route. The supplying installer/dealer is the normal service starting point; do not describe direct contact as universally forbidden or promise a claim decision.

What to tell your customer

We will match the complete camera and mounting/connection arrangement to its actual instructions and the approved site detail. We will document the parts, entry and service access and identify any rating or future replacement limit. A box does not guarantee a dry connector, an upgrade without new fixing or automatic warranty coverage.

FAQ

Do I need a junction box for an indoor security camera?

Check the exact model’s connector, mounting and environmental instructions and the project/local requirements. A concealed cable or drop ceiling does not by itself decide whether a box is needed. Use the approved support and connection arrangement; wash-down and other special environments require their own suitability review.

Which CASE junction box fits the CS-I8XQ II-2.8mm turret?

Obtain the current sheet and installation instructions for the full CS-I8XQ II-2.8mm revision and the proposed box/stack. The catalog page does not establish the pairing. Record the exact accessory suffix and seek written clarification where the documents are silent; do not infer fit from a series name or photograph.

Can I mount a camera on a corner without a corner mount?

Use an attachment and stack approved for the camera, substrate and required view. CS-A35 is one corner-mount candidate, not a requirement for every corner or proof of two-facade coverage. Obtain the applicable fixing detail and verify the view; do not improvise a wedge, hole pattern or anchor arrangement. Use the pole and corner mounting guide to gather the structure and load questions.

Are the CASE junction boxes rated IP66 or NEMA 4?

Those catalog accessory pages do not establish an IP66 or NEMA 4 claim. Request the actual accessory/assembly evidence and installation conditions for the required rating. A bottom entry, gland and sealant alone do not prove it, and an improvised drain may defeat the design. Confirm before making a bid commitment.

What is the warranty on CASE mounts and junction boxes?

Confirm the term, exclusions and claim process for the exact model and revision in writing. Obtain the written terms for the exact supplied accessory and camera, record their identities and follow the authorized claim instructions. Do not infer unlimited coverage, freight, replacement or acceptance from a general accessory label.
